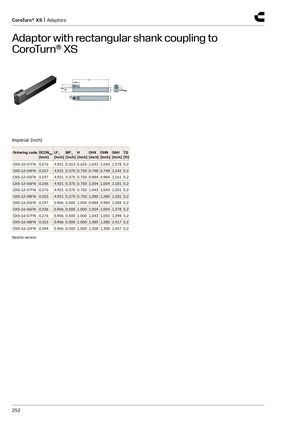

CoroTurn® XS
Imperial (inch)
| Ordering code | DCONWS [inch] | LF1 [inch] | WF1 [inch] | H [inch] | OHX [inch] | OHN [inch] | OAH [inch] | TQ [ft] |
| CXS-10-07FN | 0.276 | 4.921 | 0.313 | 0.625 | 1.043 | 1.043 | 1.378 | 5.2 |
| CXS-12-04FN | 0.157 | 4.921 | 0.375 | 0.750 | 0.748 | 0.748 | 1.142 | 5.2 |
| CXS-12-05FN | 0.197 | 4.921 | 0.375 | 0.750 | 0.984 | 0.984 | 1.161 | 5.2 |
| CXS-12-06FN | 0.236 | 4.921 | 0.375 | 0.750 | 1.004 | 1.004 | 1.181 | 5.2 |
| CXS-12-07FN | 0.276 | 4.921 | 0.375 | 0.750 | 1.043 | 1.043 | 1.201 | 5.2 |
| CXS-12-08FN | 0.315 | 4.921 | 0.375 | 0.750 | 1.280 | 1.280 | 1.181 | 5.2 |
| CXS-16-05FN | 0.197 | 5.906 | 0.500 | 1.000 | 0.984 | 0.984 | 1.358 | 5.2 |
| CXS-16-06FN | 0.236 | 5.906 | 0.500 | 1.000 | 1.004 | 1.004 | 1.378 | 5.2 |
| CXS-16-07FN | 0.276 | 5.906 | 0.500 | 1.000 | 1.043 | 1.043 | 1.398 | 5.2 |
| CXS-16-08FN | 0.315 | 5.906 | 0.500 | 1.000 | 1.280 | 1.280 | 1.417 | 5.2 |
| CXS-16-10FN | 0.394 | 5.906 | 0.500 | 1.000 | 1.358 | 1.358 | 1.457 | 5.2 |
Neutral version
