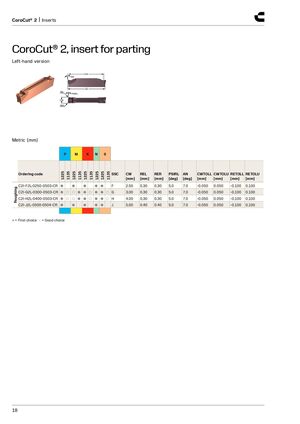

CoroCut® 2, insert for parting
Left-hand version
| etric (mm) | LIG CDX AN CW REL RER PSIRL | |||||||||
| P M K N S | ||||||||||
| Ordering code | 1225 1135 1225 1135 1225 1135 1225 1225 1135 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRL [deg] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] |
| g C2I-F2L-0250-0503-CR | ● ● ● ●● F | 2.50 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
| ghin C2I-G2L-0300-0503-CR | ●○○●●○●●○G | 3.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
| Rou C2I-H2L-0400-0503-CR | ●○○●●○●●○H | 4.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
| C2I-J2L-0500-0504-CR | ● ● ● ●● J | 5.00 | 0.40 | 0.40 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 | 0.100 |
- = First choice ○ = Good choice
