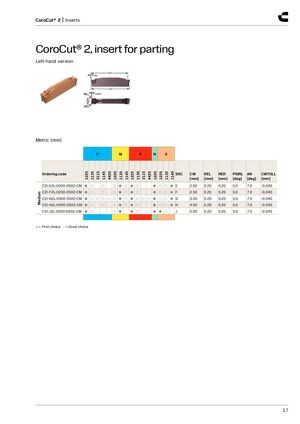

CoroCut® 2, insert for parting
Left-hand version
CDX AN
LIG REL PSIRL CW RER
Metric (mm)
| P | M | K | N | S | ||||||||
| Ordering code | 1225 1135 3115 1145 4425 | 1225 1135 1145 | 1225 1135 3115 | 4425 1225 1225 | 1135 1145 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRL [deg] | AN [deg] | CWTOLL [mm] | |
| C2I-E2L-0200-0502-CM | ●○ ○ | ○●○ | ●○ | ●○ | ○●E | 2.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.040 | |
| m C2I-F2L-0250-0502-CM | ●○ ○ | ○●○ | ●○ | ●○ | ○●F | 2.50 | 0.20 | 0.20 | 5.0 | 7.0 | -0.040 | |
| ediu C2I-G2L-0300-0502-CM | ●○○○○ | ○●○ | ●○○ | ○●○ | ○●G | 3.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.040 | |
| M C2I-H2L-0400-0502-CM | ●○ ○ | ○●○ | ●○ | ●○ | ○●H | 4.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.045 | |
| C2I-J2L-0500-0502-CM | ●○ | ○● | ●○ | ●● | ○ J | 5.00 | 0.20 | 0.20 | 5.0 | 7.0 | -0.045 |
- = First choice ○ = Good choice
