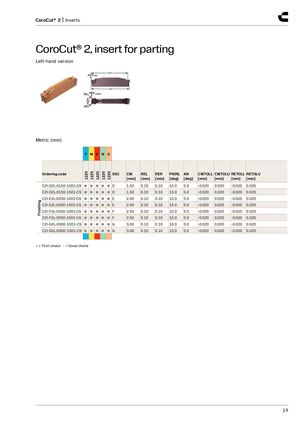

CoroCut® 2, insert for parting
Left-hand version
CDX AN
LIG REL PSIRL CW RER
Metric (mm)
| P | M | K N | S | |||||||||||
| Ordering code | 1225 | 22 | 15 | 1225 1225 | 1225 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRL [deg] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] |
| C2I-D2L-0150-1001-CS | ● | ● | ●● | ●D | 1.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-D2L-0150-1501-CS | ● | ● | ●● | ●D | 1.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| g C2I-E2L-0200-1001-CS | ● | ● | ●● | ●E | 2.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| shin C2I-E2L-0200-1501-CS | ● | ● | ●● | ●E | 2.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| Fini C2I-F2L-0250-1001-CS | ● | ● | ●● | ●F | 2.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-F2L-0250-1501-CS | ● | ● | ●● | ●F | 2.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2L-0300-1001-CS | ● | ● | ●● | ●G | 3.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2L-0300-1501-CS | ● | ● | ●● | ●G | 3.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
- = First choice ○ = Good choice
