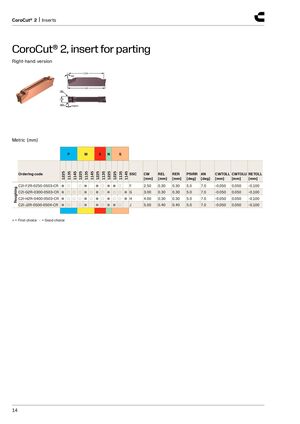

CoroCut® 2, insert for parting
Right-hand version
CDX AN
LIG REL
CW RER PSIRR
Metric (mm)
| P | M | K | N | S | |||||||||||
| Ordering code | 1225 1135 | 1145 1225 1135 1145 | 1225 | 1135 | 1225 | 1225 | 1135 1145 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRR [deg] | AN [deg] | CWTOL [mm] | L CWTOL [mm] | U RETOLL [mm] |
| g C2I-F2R-0250-0503-CR | ●○ | ○● | ● | ○ | ● | ● | ○ F | 2.50 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 |
| ghin C2I-G2R-0300-0503-CR | ●○○ | ○●○ | ● | ○ | ● | ○ | ○●G | 3.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 |
| Rou C2I-H2R-0400-0503-CR | ●○○ | ○●○ | ● | ○ | ● | ○ | ○●H | 4.00 | 0.30 | 0.30 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 |
| C2I-J2R-0500-0504-CR | ●○ | ○● | ● | ○ | ● | ● | ○ J | 5.00 | 0.40 | 0.40 | 5.0 | 7.0 | -0.050 | 0.050 | -0.100 |
- = First choice ○ = Good choice
