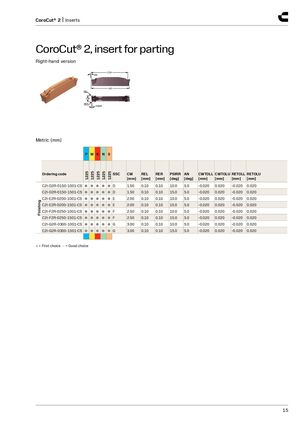

CoroCut® 2, insert for parting
Right-hand version
CDX AN
REL CW RER
LIG
PSIRR
Metric (mm)
| P M K | N S | ||||||||||
| Ordering code | 1225 1225 1225 | 1225 1225 SSC | CW [mm] | REL [mm] | RER [mm] | PSIRR [deg] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] | RETOLU [mm] |
| C2I-D2R-0150-1001-CS | ●●● | ●●D | 1.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-D2R-0150-1501-CS | ●●● | ●●D | 1.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| g C2I-E2R-0200-1001-CS | ●●● | ●●E | 2.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| shin C2I-E2R-0200-1501-CS | ●●● | ●●E | 2.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| Fini C2I-F2R-0250-1001-CS | ●●● | ●●F | 2.50 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-F2R-0250-1501-CS | ●●● | ●●F | 2.50 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2R-0300-1001-CS | ●●● | ●●G | 3.00 | 0.10 | 0.10 | 10.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
| C2I-G2R-0300-1501-CS | ●●● | ●●G | 3.00 | 0.10 | 0.10 | 15.0 | 5.0 | -0.020 | 0.020 | -0.020 | 0.020 |
- = First choice ○ = Good choice
