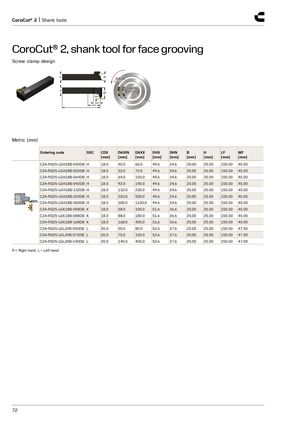

CoroCut® 2 | Shank tools CoroCut® 2, shank tool for face grooving Screw clamp design H HF B WF CDX OHN OHX LF Metric (mm) Ordering code SSC CDX DAXIN DAXX OHX OHN B H LF WF [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] C2A-RS25-LGH18B-040DB H 18.0 40.0 60.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-052DB H 18.0 52.0 72.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-064DB H 18.0 64.0 100.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-092DB H 18.0 92.0 140.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-132DB H 18.0 132.0 230.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-220DB H 18.0 220.0 500.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGH18B-300DB H 18.0 300.0 1100.0 49.6 24.6 25.00 25.00 150.00 45.00 C2A-RS25-LGK18B-058DB K 18.0 58.0 100.0 51.6 26.6 25.00 25.00 150.00 45.00 C2A-RS25-LGK18B-088DB K 18.0 88.0 180.0 51.6 26.6 25.00 25.00 150.00 45.00 C2A-RS25-LGK18B-168DB K 18.0 168.0 400.0 51.6 26.6 25.00 25.00 150.00 45.00 C2A-RS25-LGL20B-050DB L 20.0 50.0 80.0 52.6 27.6 25.00 25.00 150.00 47.00 C2A-RS25-LGL20B-075DB L 20.0 75.0 150.0 52.6 27.6 25.00 25.00 150.00 47.00 C2A-RS25-LGL20B-140DB L 20.0 140.0 400.0 52.6 27.6 25.00 25.00 150.00 47.00 R = Right hand, L = Left hand 72
