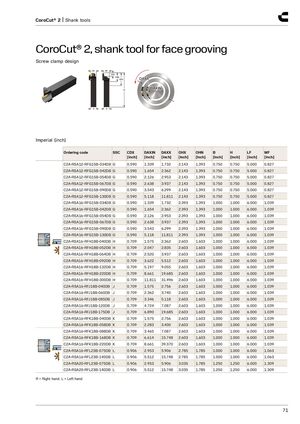

CoroCut® 2 | Shank tools CoroCut® 2, shank tool for face grooving Screw clamp design HF WF CDX OHN OHX LF H B Imperial (inch) Ordering code SSC CDX DAXIN DAXX OHX OHN B H LF WF [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] C2A-RSA12-RFG15B-034DB G 0.590 1.339 1.732 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA12-RFG15B-042DB G 0.590 1.654 2.362 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA12-RFG15B-054DB G 0.590 2.126 2.953 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA12-RFG15B-067DB G 0.590 2.638 3.937 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA12-RFG15B-090DB G 0.590 3.543 6.299 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA12-RFG15B-130DB G 0.590 5.118 11.811 2.143 1.393 0.750 0.750 5.000 0.827 C2A-RSA16-RFG15B-034DB G 0.590 1.339 1.732 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFG15B-042DB G 0.590 1.654 2.362 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFG15B-054DB G 0.590 2.126 2.953 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFG15B-067DB G 0.590 2.638 3.937 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFG15B-090DB G 0.590 3.543 6.299 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFG15B-130DB G 0.590 5.118 11.811 2.393 1.393 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-040DB H 0.709 1.575 2.362 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-052DB H 0.709 2.047 2.835 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-064DB H 0.709 2.520 3.937 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-092DB H 0.709 3.622 5.512 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-132DB H 0.709 5.197 9.055 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-220DB H 0.709 8.661 19.685 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFH18B-300DB H 0.709 11.811 31.496 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFJ18B-040DB J 0.709 1.575 2.756 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFJ18B-060DB J 0.709 2.362 3.740 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFJ18B-085DB J 0.709 3.346 5.118 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFJ18B-120DB J 0.709 4.724 7.087 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFJ18B-175DB J 0.709 6.890 19.685 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFK18B-040DB K 0.709 1.575 2.756 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFK18B-058DB K 0.709 2.283 3.400 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFK18B-088DB K 0.709 3.465 7.087 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFK18B-168DB K 0.709 6.614 15.748 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFK18B-220DB K 0.709 8.661 39.370 2.603 1.603 1.000 1.000 6.000 1.039 C2A-RSA16-RFL23B-075DB L 0.906 2.953 5.906 2.785 1.785 1.000 1.000 6.000 1.063 C2A-RSA16-RFL23B-140DB L 0.906 5.512 15.748 2.785 1.785 1.000 1.000 6.000 1.063 C2A-RSA20-RFL23B-075DB L 0.906 2.953 5.906 3.035 1.785 1.250 1.250 6.000 1.309 C2A-RSA20-RFL23B-140DB L 0.906 5.512 15.748 3.035 1.785 1.250 1.250 6.000 1.309 R = Right hand, L = Left hand 71
