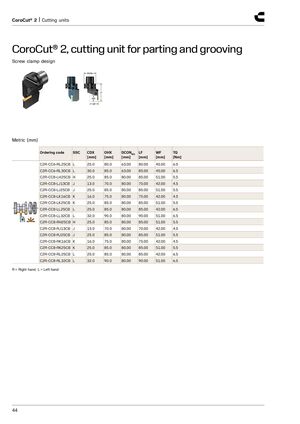

CoroCut® 2, cutting unit for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CC6-RL25CB | L | 25.0 | 80.0 | 63.00 | 80.00 | 45.00 | 6.5 |
| C2R-CC6-RL30CB | L | 30.0 | 85.0 | 63.00 | 85.00 | 45.00 | 6.5 |
| C2R-CC8-LH25CB | H | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-LJ13CB | J | 13.0 | 70.0 | 80.00 | 70.00 | 42.00 | 4.5 |
| C2R-CC8-LJ25CB | J | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-LK16CB | K | 16.0 | 75.0 | 80.00 | 75.00 | 42.00 | 4.5 |
| C2R-CC8-LK25CB | K | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-LL25CB | L | 25.0 | 85.0 | 80.00 | 85.00 | 42.00 | 6.5 |
| C2R-CC8-LL32CB | L | 32.0 | 90.0 | 80.00 | 90.00 | 51.00 | 6.5 |
| C2R-CC8-RH25CB | H | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-RJ13CB | J | 13.0 | 70.0 | 80.00 | 70.00 | 42.00 | 4.5 |
| C2R-CC8-RJ25CB | J | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-RK16CB | K | 16.0 | 75.0 | 80.00 | 75.00 | 42.00 | 4.5 |
| C2R-CC8-RK25CB | K | 25.0 | 85.0 | 80.00 | 85.00 | 51.00 | 5.5 |
| C2R-CC8-RL25CB | L | 25.0 | 85.0 | 80.00 | 85.00 | 42.00 | 6.5 |
| C2R-CC8-RL32CB | L | 32.0 | 90.0 | 80.00 | 90.00 | 51.00 | 6.5 |
R = Right hand, L = Left hand
