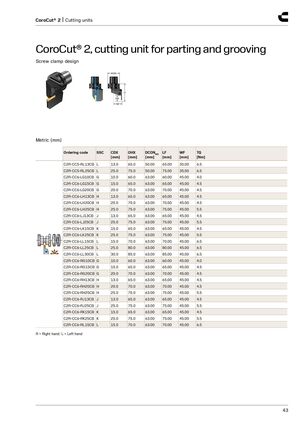

CoroCut® 2, cutting unit for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CC5-RL13CB | L | 13.0 | 65.0 | 50.00 | 65.00 | 35.00 | 6.5 |
| C2R-CC5-RL25CB | L | 25.0 | 75.0 | 50.00 | 75.00 | 35.00 | 6.5 |
| C2R-CC6-LG10CB | G | 10.0 | 60.0 | 63.00 | 60.00 | 45.00 | 4.0 |
| C2R-CC6-LG15CB | G | 15.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-LG20CB | G | 20.0 | 70.0 | 63.00 | 70.00 | 45.00 | 4.5 |
| C2R-CC6-LH13CB | H | 13.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-LH20CB | H | 20.0 | 70.0 | 63.00 | 70.00 | 45.00 | 4.5 |
| C2R-CC6-LH25CB | H | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-LJ13CB | J | 13.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-LJ25CB | J | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-LK15CB | K | 15.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-LK25CB | K | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-LL15CB | L | 15.0 | 70.0 | 63.00 | 70.00 | 45.00 | 6.5 |
| C2R-CC6-LL25CB | L | 25.0 | 80.0 | 63.00 | 80.00 | 45.00 | 6.5 |
| C2R-CC6-LL30CB | L | 30.0 | 85.0 | 63.00 | 85.00 | 45.00 | 6.5 |
| C2R-CC6-RG10CB | G | 10.0 | 60.0 | 63.00 | 60.00 | 45.00 | 4.0 |
| C2R-CC6-RG15CB | G | 15.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-RG20CB | G | 20.0 | 70.0 | 63.00 | 70.00 | 45.00 | 4.5 |
| C2R-CC6-RH13CB | H | 13.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-RH20CB | H | 20.0 | 70.0 | 63.00 | 70.00 | 45.00 | 4.5 |
| C2R-CC6-RH25CB | H | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-RJ13CB | J | 13.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-RJ25CB | J | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-RK15CB | K | 15.0 | 65.0 | 63.00 | 65.00 | 45.00 | 4.5 |
| C2R-CC6-RK25CB | K | 25.0 | 75.0 | 63.00 | 75.00 | 45.00 | 5.5 |
| C2R-CC6-RL15CB | L | 15.0 | 70.0 | 63.00 | 70.00 | 45.00 | 6.5 |
R = Right hand, L = Left hand
