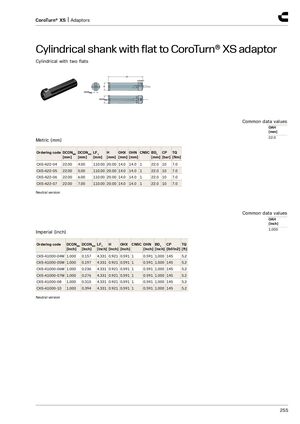

Cylindrical shank with flat to CoroTurn® XS adaptor
Cylindrical with two flats
Common data values
OAH [mm] Metric (mm) 22.0
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF1 [mm] | H [mm] | OHX [mm] | OHN [mm] | CNSC | BD1 [mm] | CP [bar] | TQ [Nm] |
| CXS-A22-04 | 22.00 | 4.00 | 110.00 | 20.00 | 14.0 | 14.0 | 1 | 22.0 | 10 | 7.0 |
| CXS-A22-05 | 22.00 | 5.00 | 110.00 | 20.00 | 14.0 | 14.0 | 1 | 22.0 | 10 | 7.0 |
| CXS-A22-06 | 22.00 | 6.00 | 110.00 | 20.00 | 14.0 | 14.0 | 1 | 22.0 | 10 | 7.0 |
| CXS-A22-07 | 22.00 | 7.00 | 110.00 | 20.00 | 14.0 | 14.0 | 1 | 22.0 | 10 | 7.0 |
Neutral version
Common data values
OAH [inch] Imperial (inch) 1.000
| Ordering code | DCONMS [inch] | DCONWS [inch] | LF1 [inch] | H [inch] | OHX [inch] | CNSC | OHN [inch] | BD1 [inch] | CP [lbf/in2] | TQ [ft] |
| CXS-A1000-04M | 1.000 | 0.157 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
| CXS-A1000-05M | 1.000 | 0.197 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
| CXS-A1000-06M | 1.000 | 0.236 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
| CXS-A1000-07M | 1.000 | 0.276 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
| CXS-A1000-08 | 1.000 | 0.315 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
| CXS-A1000-10 | 1.000 | 0.394 | 4.331 | 0.921 | 0.591 | 1 | 0.591 | 1.000 | 145 | 5.2 |
Neutral version
