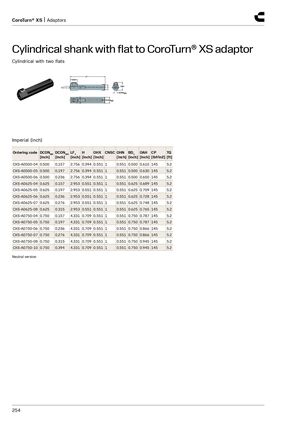

Cylindrical shank with flat to CoroTurn® XS adaptor
Cylindrical with two flats
Imperial (inch)
| Ordering code | DCONMS [inch] | DCONWS [inch] | LF1 [inch] | H [inch] | OHX [inch] | CNSC | OHN [inch] | BD1 [inch] | OAH [inch] | CP [lbf/in2] | TQ [ft] |
| CXS-A0500-04 | 0.500 | 0.157 | 2.756 | 0.394 | 0.551 | 1 | 0.551 | 0.500 | 0.610 | 145 | 5.2 |
| CXS-A0500-05 | 0.500 | 0.197 | 2.756 | 0.394 | 0.551 | 1 | 0.551 | 0.500 | 0.630 | 145 | 5.2 |
| CXS-A0500-06 | 0.500 | 0.236 | 2.756 | 0.394 | 0.551 | 1 | 0.551 | 0.500 | 0.650 | 145 | 5.2 |
| CXS-A0625-04 | 0.625 | 0.157 | 2.953 | 0.551 | 0.551 | 1 | 0.551 | 0.625 | 0.689 | 145 | 5.2 |
| CXS-A0625-05 | 0.625 | 0.197 | 2.953 | 0.551 | 0.551 | 1 | 0.551 | 0.625 | 0.709 | 145 | 5.2 |
| CXS-A0625-06 | 0.625 | 0.236 | 2.953 | 0.551 | 0.551 | 1 | 0.551 | 0.625 | 0.728 | 145 | 5.2 |
| CXS-A0625-07 | 0.625 | 0.276 | 2.953 | 0.551 | 0.551 | 1 | 0.551 | 0.625 | 0.748 | 145 | 5.2 |
| CXS-A0625-08 | 0.625 | 0.315 | 2.953 | 0.551 | 0.551 | 1 | 0.551 | 0.625 | 0.765 | 145 | 5.2 |
| CXS-A0750-04 | 0.750 | 0.157 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.787 | 145 | 5.2 |
| CXS-A0750-05 | 0.750 | 0.197 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.787 | 145 | 5.2 |
| CXS-A0750-06 | 0.750 | 0.236 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.866 | 145 | 5.2 |
| CXS-A0750-07 | 0.750 | 0.276 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.866 | 145 | 5.2 |
| CXS-A0750-08 | 0.750 | 0.315 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.945 | 145 | 5.2 |
| CXS-A0750-10 | 0.750 | 0.394 | 4.331 | 0.709 | 0.551 | 1 | 0.551 | 0.750 | 0.945 | 145 | 5.2 |
Neutral version
