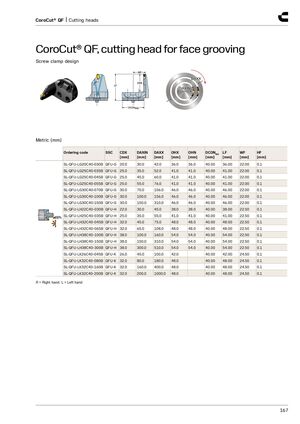

CoroCut® QF, cutting head for face grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] |
| SL-QFU-LG20C40-030B QFU-G | 20.0 | 30.0 | 42.0 | 36.0 | 36.0 | 40.00 | 36.00 | 22.00 | 0.1 |
| SL-QFU-LG25C40-035B QFU-G | 25.0 | 35.0 | 52.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFU-LG25C40-045B QFU-G | 25.0 | 45.0 | 60.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFU-LG25C40-055B QFU-G | 25.0 | 55.0 | 76.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFU-LG30C40-070B QFU-G | 30.0 | 70.0 | 106.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-LG30C40-100B QFU-G | 30.0 | 100.0 | 156.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-LG30C40-150B QFU-G | 30.0 | 150.0 | 310.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-LH22C40-030B QFU-H | 22.0 | 30.0 | 45.0 | 38.0 | 38.0 | 40.00 | 38.00 | 22.50 | 0.1 |
| SL-QFU-LH25C40-035B QFU-H | 25.0 | 35.0 | 55.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.50 | 0.1 |
| SL-QFU-LH32C40-045B QFU-H | 32.0 | 45.0 | 75.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFU-LH32C40-065B QFU-H | 32.0 | 65.0 | 108.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFU-LH38C40-100B QFU-H | 38.0 | 100.0 | 160.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-LH38C40-150B QFU-H | 38.0 | 150.0 | 310.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-LH38C40-300B QFU-H | 38.0 | 300.0 | 510.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-LK26C40-045B QFU-K | 26.0 | 45.0 | 100.0 | 42.0 | 40.00 | 42.00 | 24.50 | 0.1 | |
| SL-QFU-LK32C40-080B QFU-K | 32.0 | 80.0 | 180.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFU-LK32C40-160B QFU-K | 32.0 | 160.0 | 400.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFU-LK32C40-200B QFU-K | 32.0 | 200.0 | 1000.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 |
R = Right hand, L = Left hand
