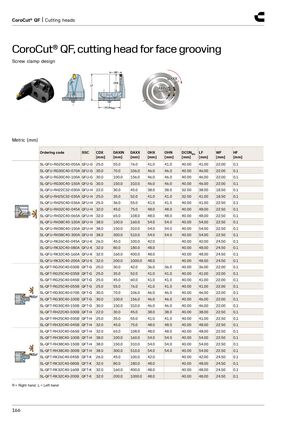

CoroCut® QF, cutting head for face grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] |
| SL-QFU-RG25C40-055A QFU-G | 25.0 | 55.0 | 76.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFU-RG30C40-070A QFU-G | 30.0 | 70.0 | 106.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-RG30C40-100A QFU-G | 30.0 | 100.0 | 156.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-RG30C40-150A QFU-G | 30.0 | 150.0 | 310.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFU-RH22C32-030A QFU-H | 22.0 | 30.0 | 45.0 | 38.0 | 38.0 | 32.00 | 38.00 | 18.50 | 0.1 |
| SL-QFU-RH25C32-035A QFU-H | 25.0 | 35.0 | 52.0 | 41.0 | 41.0 | 32.00 | 41.00 | 18.50 | 0.1 |
| SL-QFU-RH25C40-036A QFU-H | 25.0 | 36.0 | 55.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.50 | 0.1 |
| SL-QFU-RH32C40-045A QFU-H | 32.0 | 45.0 | 75.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFU-RH32C40-065A QFU-H | 32.0 | 65.0 | 108.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFU-RH38C40-100A QFU-H | 38.0 | 100.0 | 160.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-RH38C40-150A QFU-H | 38.0 | 150.0 | 310.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-RH38C40-300A QFU-H | 38.0 | 300.0 | 510.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFU-RK26C40-045A QFU-K | 26.0 | 45.0 | 100.0 | 42.0 | 40.00 | 42.00 | 24.50 | 0.1 | |
| SL-QFU-RK32C40-080A QFU-K | 32.0 | 80.0 | 180.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFU-RK32C40-160A QFU-K | 32.0 | 160.0 | 400.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFU-RK32C40-200A QFU-K | 32.0 | 200.0 | 1000.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFT-RG20C40-030B QFT-G | 20.0 | 30.0 | 42.0 | 36.0 | 36.0 | 40.00 | 36.00 | 22.00 | 0.1 |
| SL-QFT-RG25C40-035B QFT-G | 25.0 | 35.0 | 52.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFT-RG25C40-045B QFT-G | 25.0 | 45.0 | 60.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFT-RG25C40-055B QFT-G | 25.0 | 55.0 | 76.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.00 | 0.1 |
| SL-QFT-RG30C40-070B QFT-G | 30.0 | 70.0 | 106.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFT-RG30C40-100B QFT-G | 30.0 | 100.0 | 156.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFT-RG30C40-150B QFT-G | 30.0 | 150.0 | 310.0 | 46.0 | 46.0 | 40.00 | 46.00 | 22.00 | 0.1 |
| SL-QFT-RH22C40-030B QFT-H | 22.0 | 30.0 | 45.0 | 38.0 | 38.0 | 40.00 | 38.00 | 22.50 | 0.1 |
| SL-QFT-RH25C40-035B QFT-H | 25.0 | 35.0 | 55.0 | 41.0 | 41.0 | 40.00 | 41.00 | 22.50 | 0.1 |
| SL-QFT-RH32C40-045B QFT-H | 32.0 | 45.0 | 75.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFT-RH32C40-065B QFT-H | 32.0 | 65.0 | 108.0 | 48.0 | 48.0 | 40.00 | 48.00 | 22.50 | 0.1 |
| SL-QFT-RH38C40-100B QFT-H | 38.0 | 100.0 | 160.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFT-RH38C40-150B QFT-H | 38.0 | 150.0 | 310.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFT-RH38C40-300B QFT-H | 38.0 | 300.0 | 510.0 | 54.0 | 54.0 | 40.00 | 54.00 | 22.50 | 0.1 |
| SL-QFT-RK26C40-045B QFT-K | 26.0 | 45.0 | 100.0 | 42.0 | 40.00 | 42.00 | 24.50 | 0.1 | |
| SL-QFT-RK32C40-080B QFT-K | 32.0 | 80.0 | 180.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFT-RK32C40-160B QFT-K | 32.0 | 160.0 | 400.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 | |
| SL-QFT-RK32C40-200B QFT-K | 32.0 | 200.0 | 1000.0 | 48.0 | 40.00 | 48.00 | 24.50 | 0.1 |
