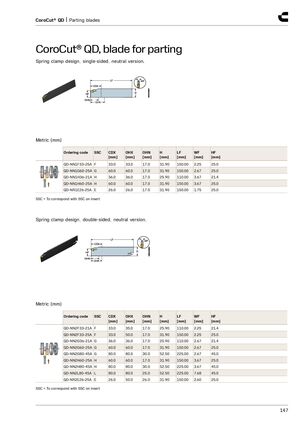

CoroCut® QD, blade for parting
Spring clamp design, single-sided, neutral version.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-NN1F33-25A | F | 33.0 | 33.0 | 17.0 | 31.90 | 150.00 | 2.25 | 25.0 |
| QD-NN1G60-25A | G | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 2.67 | 25.0 |
| QD-NN1H36-21A | H | 36.0 | 36.0 | 17.0 | 25.90 | 110.00 | 3.67 | 21.4 |
| QD-NN1H60-25A | H | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 3.67 | 25.0 |
| QD-NR1E26-25A | E | 26.0 | 26.0 | 17.0 | 31.90 | 150.00 | 1.75 | 25.0 |
SSC = To correspond with SSC on insert Spring clamp design, double-sided, neutral version.
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-NN2F33-21A | F | 33.0 | 35.0 | 17.0 | 25.90 | 110.00 | 2.25 | 21.4 |
| QD-NN2F33-25A | F | 33.0 | 50.0 | 17.0 | 31.90 | 150.00 | 2.25 | 25.0 |
| QD-NN2G36-21A | G | 36.0 | 36.0 | 17.0 | 25.90 | 110.00 | 2.67 | 21.4 |
| QD-NN2G60-25A | G | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 2.67 | 25.0 |
| QD-NN2G80-45A | G | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 2.67 | 45.0 |
| QD-NN2H60-25A | H | 60.0 | 60.0 | 17.0 | 31.90 | 150.00 | 3.67 | 25.0 |
| QD-NN2H80-45A | H | 80.0 | 80.0 | 30.0 | 52.50 | 225.00 | 3.67 | 45.0 |
| QD-NN2L80-45A | L | 80.0 | 80.0 | 25.0 | 52.50 | 225.00 | 7.68 | 45.0 |
| QD-NR2E26-25A | E | 26.0 | 50.0 | 26.0 | 31.90 | 150.00 | 2.60 | 25.0 |
SSC = To correspond with SSC on insert
