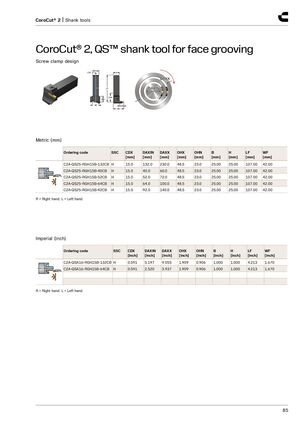

CoroCut® 2, QS™ shank tool for face grooving
Screw clamp design
H CNT B
LF
OHX HBL HF CDX WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| C2A-QS25-RGH15B-132CB | H | 15.0 | 132.0 | 230.0 | 48.5 | 23.0 | 25.00 | 25.00 | 107.00 | 42.00 |
| C2A-QS25-RGH15B-40CB | H | 15.0 | 40.0 | 60.0 | 48.5 | 23.0 | 25.00 | 25.00 | 107.00 | 42.00 |
| C2A-QS25-RGH15B-52CB | H | 15.0 | 52.0 | 72.0 | 48.5 | 23.0 | 25.00 | 25.00 | 107.00 | 42.00 |
| C2A-QS25-RGH15B-64CB | H | 15.0 | 64.0 | 100.0 | 48.5 | 23.0 | 25.00 | 25.00 | 107.00 | 42.00 |
| C2A-QS25-RGH15B-92CB | H | 15.0 | 92.0 | 140.0 | 48.5 | 23.0 | 25.00 | 25.00 | 107.00 | 42.00 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX | DAXIN | DAXX | OHX | OHN | B | H | LF | WF |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | ||
| C2A-QSA16-RGH15B-132CB | H | 0.591 | 5.197 | 9.055 | 1.909 | 0.906 | 1.000 | 1.000 | 4.213 | 1.670 |
| C2A-QSA16-RGH15B-64CB | H | 0.591 | 2.520 | 3.937 | 1.909 | 0.906 | 1.000 | 1.000 | 4.213 | 1.670 |
R = Right hand, L = Left hand
