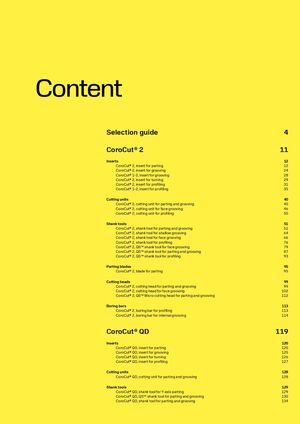

Content
Selection guide 4
| CoroCut® 2 | 11 |
| Inserts | 12 |
| CoroCut® 2, insert for parting | 12 |
| CoroCut® 2, insert for grooving | 24 |
| CoroCut® 1-2, insert for grooving | 28 |
| CoroCut® 2, insert for turning i | 29 |
| CoroCut® 2, insert for profiling i | 31 |
| CoroCut® 1-2, insert for profiling | 35 |
| Cutting units | 40 |
| CoroCut® 2, cutting unit for parting and grooving | 40 |
| CoroCut® 2, cutting unit for face grooving i | 46 |
| CoroCut® 2, cutting unit for profiling | 50 |
| Shank tools | 51 |
| CoroCut® 2, shank tool for parting and grooving | 51 |
| CoroCut® 2, shank tool for shallow grooving | 64 |
| CoroCut® 2, shank tool for face grooving i | 66 |
| CoroCut® 2, shank tool for profiling | 76 |
| CoroCut® 2, QS™ shank tool for face grooving | 79 |
| CoroCut® 2, QS™ shank tool for parting and grooving i | 87 |
| CoroCut® 2, QS™ shank tool for profiling | 93 |
| Parting blades | 95 |
| CoroCut® 2, blade for parting | 95 |
| Cutting heads | 99 |
| CoroCut® 2, cutting head for parting and grooving | 99 |
| CoroCut® 2, cutting head for face grooving | 102 |
| CoroCut® 2, QS™ Micro cutting head for parting and grooving | 112 |
| Boring bars i | 113 |
| CoroCut® 2, boring bar for profiling | 113 |
| CoroCut® 2, boring bar for internal grooving | 114 |
| CoroCut® QD | 119 |
| Inserts | 120 |
| CoroCut® QD, insert for parting | 120 |
| CoroCut® QD, insert for grooving | 125 |
| CoroCut® QD, insert for turning i | 126 |
| CoroCut® QD, insert for profiling | 127 |
| Cutting units | 128 |
| CoroCut® QD, cutting unit for parting and grooving | 128 |
| Shank tools | 129 |
| CoroCut® QD, shank tool for Y-axis parting | 129 |
| CoroCut® QD, QS™ shank tool for parting and grooving | 130 |
| CoroCut® QD, shank tool for parting and grooving | 134 |
