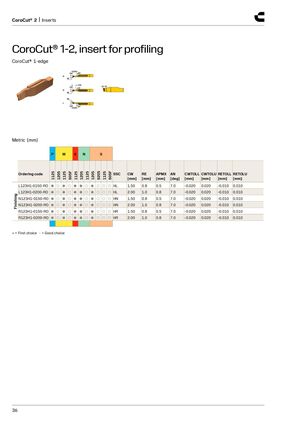

CoroCut® 1-2, insert for profiling
CoroCut® 1-edge
Metric (mm)
| P | M | K | N | S | |||||||||||
| Ordering code | 1125 | 1205 1125 S05F | 1125 | 1205 1125 | 1205 S205 1125 | S05F SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOL [mm] | U RETOLL [mm] | RETOLU [mm] | |
| L123H1-0150-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HL | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | |
| g L123H1-0200-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HL | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | |
| shin N123H1-0150-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HN | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | |
| Fini N123H1-0200-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HN | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | |
| R123H1-0150-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HR | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 | |
| R123H1-0200-RO | ● | ○●○ | ● | ●○ | ●○○ | ○HR | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
- = First choice ○ = Good choice
