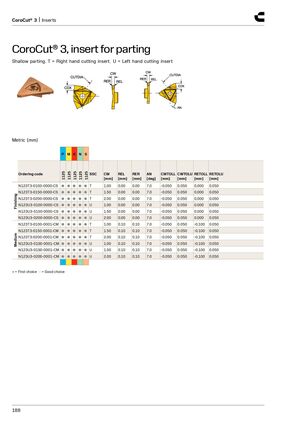

CoroCut® 3, insert for parting
Shallow parting. T = Right hand cutting insert, U = Left hand cutting insert
Metric (mm)
| P | M | K | N S | ||||||||||
| Ordering code | 1125 | 112 | 5 1125 | 1125 1125 | SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] | RETOLU [mm] |
| N123T3-0100-0000-CS | ● | ● | ● | ●● | T | 1.00 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| g N123T3-0150-0000-CS | ● | ● | ● | ●● | T | 1.50 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| shin N123T3-0200-0000-CS | ● | ● | ● | ●● | T | 2.00 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| Fini N123U3-0100-0000-CS | ● | ● | ● | ●● | U | 1.00 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| N123U3-0150-0000-CS | ● | ● | ● | ●● | U | 1.50 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| N123U3-0200-0000-CS | ● | ● | ● | ●● | U | 2.00 | 0.00 | 0.00 | 7.0 | -0.050 | 0.050 | 0.000 | 0.050 |
| N123T3-0100-0001-CM | ● | ● | ● | ●● | T | 1.00 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
| N123T3-0150-0001-CM | ● | ● | ● | ●● | T | 1.50 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
| dium N123T3-0200-0001-CM | ● | ● | ● | ●● | T | 2.00 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
| Me N123U3-0100-0001-CM | ● | ● | ● | ●● | U | 1.00 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
| N123U3-0150-0001-CM | ● | ● | ● | ●● | U | 1.50 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
| N123U3-0200-0001-CM | ● | ● | ● | ●● | U | 2.00 | 0.10 | 0.10 | 7.0 | -0.050 | 0.050 | -0.100 | 0.050 |
- = First choice ○ = Good choice
