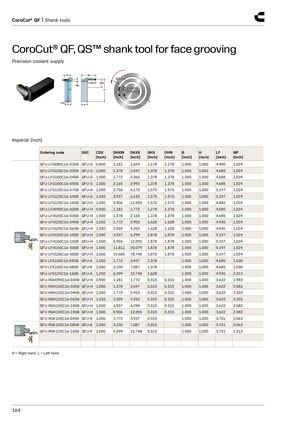

CoroCut® QF, QS™ shank tool for face grooving
Precision coolant supply
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] |
| QFU-LFG080C16-030B | QFU-G | 0.800 | 1.181 | 1.654 | 1.178 | 1.178 | 1.000 | 1.000 | 4.485 | 1.024 |
| QFU-LFG100C16-035B | QFU-G | 1.000 | 1.378 | 2.047 | 1.378 | 1.378 | 1.000 | 1.000 | 4.685 | 1.024 |
| QFU-LFG100C16-045B | QFU-G | 1.000 | 1.772 | 2.362 | 1.378 | 1.378 | 1.000 | 1.000 | 4.685 | 1.024 |
| QFU-LFG100C16-055B | QFU-G | 1.000 | 2.165 | 2.992 | 1.378 | 1.378 | 1.000 | 1.000 | 4.685 | 1.024 |
| QFU-LFG120C16-070B | QFU-G | 1.200 | 2.756 | 4.173 | 1.575 | 1.575 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFG120C16-100B | QFU-G | 1.200 | 3.937 | 6.142 | 1.575 | 1.575 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFG120C16-150B | QFU-G | 1.200 | 5.906 | 12.205 | 1.575 | 1.575 | 1.000 | 1.000 | 4.882 | 1.024 |
| QFU-LFH090C16-030B | QFU-H | 0.900 | 1.181 | 1.772 | 1.278 | 1.278 | 1.000 | 1.000 | 4.585 | 1.024 |
| QFU-LFH100C16-035B | QFU-H | 1.000 | 1.378 | 2.165 | 1.378 | 1.378 | 1.000 | 1.000 | 4.685 | 1.024 |
| QFU-LFH125C16-045B | QFU-H | 1.250 | 1.772 | 2.953 | 1.628 | 1.628 | 1.000 | 1.000 | 4.935 | 1.024 |
| QFU-LFH125C16-065B | QFU-H | 1.250 | 2.559 | 4.252 | 1.628 | 1.628 | 1.000 | 1.000 | 4.935 | 1.024 |
| QFU-LFH150C16-100B | QFU-H | 1.500 | 3.937 | 6.299 | 1.878 | 1.878 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFH150C16-150B | QFU-H | 1.500 | 5.906 | 12.205 | 1.878 | 1.878 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFH150C16-300B | QFU-H | 1.500 | 11.811 | 20.079 | 1.878 | 1.878 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFH150C16-500B | QFU-H | 1.500 | 19.685 | 78.740 | 1.878 | 1.878 | 1.000 | 1.000 | 5.197 | 1.024 |
| QFU-LFK100C16-045B | QFU-K | 1.000 | 1.772 | 3.937 | 1.378 | 1.000 | 1.000 | 4.685 | 1.030 | |
| QFU-LFK100C16-080B | QFU-K | 1.000 | 3.150 | 7.087 | 1.378 | 1.000 | 1.000 | 4.685 | 1.030 | |
| QFU-LFK125C16-160B | QFU-K | 1.250 | 6.299 | 15.748 | 1.628 | 1.000 | 1.000 | 4.935 | 2.313 | |
| QFU-RGH090C16-030B | QFU-H | 0.900 | 1.181 | 1.772 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 1.983 |
| QFU-RGH100C16-035B | QFU-H | 1.000 | 1.378 | 2.047 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 2.083 |
| QFU-RGH125C16-045B | QFU-H | 1.250 | 1.772 | 2.953 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 2.333 |
| QFU-RGH125C16-065B | QFU-H | 1.250 | 2.559 | 4.252 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 2.333 |
| QFU-RGH150C16-100B | QFU-H | 1.500 | 3.937 | 6.299 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 2.583 |
| QFU-RGH150C16-150B | QFU-H | 1.500 | 5.906 | 12.205 | 0.315 | 0.315 | 1.000 | 1.000 | 3.622 | 2.583 |
| QFU-RGK100C16-045B | QFU-K | 1.000 | 1.772 | 3.937 | 0.315 | 1.000 | 1.000 | 3.701 | 2.063 | |
| QFU-RGK100C16-080B | QFU-K | 1.000 | 3.150 | 7.087 | 0.315 | 1.000 | 1.000 | 3.701 | 2.063 | |
| QFU-RGK125C16-160B | QFU-K | 1.000 | 6.299 | 15.748 | 0.315 | 1.000 | 1.000 | 3.701 | 2.313 |
R = Right hand, L = Left hand
