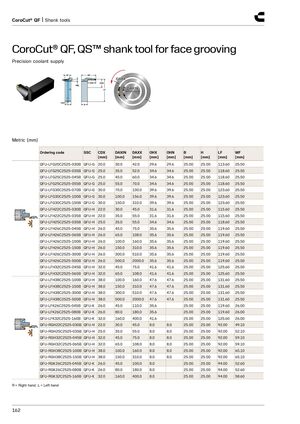

CoroCut® QF, QS™ shank tool for face grooving
Precision coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] |
| QFU-LFG20C2525-030B | QFU-G | 20.0 | 30.0 | 42.0 | 29.6 | 29.6 | 25.00 | 25.00 | 113.60 | 25.50 |
| QFU-LFG25C2525-035B | QFU-G | 25.0 | 35.0 | 52.0 | 34.6 | 34.6 | 25.00 | 25.00 | 118.60 | 25.50 |
| QFU-LFG25C2525-045B | QFU-G | 25.0 | 45.0 | 60.0 | 34.6 | 34.6 | 25.00 | 25.00 | 118.60 | 25.50 |
| QFU-LFG25C2525-055B | QFU-G | 25.0 | 55.0 | 70.0 | 34.6 | 34.6 | 25.00 | 25.00 | 118.60 | 25.50 |
| QFU-LFG30C2525-070B | QFU-G | 30.0 | 70.0 | 100.0 | 39.6 | 39.6 | 25.00 | 25.00 | 123.60 | 25.50 |
| QFU-LFG30C2525-100B | QFU-G | 30.0 | 100.0 | 156.0 | 39.6 | 39.6 | 25.00 | 25.00 | 123.60 | 25.50 |
| QFU-LFG30C2525-150B | QFU-G | 30.0 | 150.0 | 310.0 | 39.6 | 39.6 | 25.00 | 25.00 | 123.60 | 25.50 |
| QFU-LFH22C2525-030B | QFU-H | 22.0 | 30.0 | 45.0 | 31.6 | 31.6 | 25.00 | 25.00 | 115.60 | 25.50 |
| QFU-LFH22C2525-035B | QFU-H | 22.0 | 35.0 | 55.0 | 31.6 | 31.6 | 25.00 | 25.00 | 115.60 | 25.50 |
| QFU-LFH25C2525-035B | QFU-H | 25.0 | 35.0 | 55.0 | 34.6 | 34.6 | 25.00 | 25.00 | 118.60 | 25.50 |
| QFU-LFH26C2525-045B | QFU-H | 26.0 | 45.0 | 75.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH26C2525-065B | QFU-H | 26.0 | 65.0 | 108.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH26C2525-100B | QFU-H | 26.0 | 100.0 | 160.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH26C2525-150B | QFU-H | 26.0 | 150.0 | 310.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH26C2525-300B | QFU-H | 26.0 | 300.0 | 510.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH26C2525-500B | QFU-H | 26.0 | 500.0 | 2000.0 | 35.6 | 35.6 | 25.00 | 25.00 | 119.60 | 25.50 |
| QFU-LFH32C2525-045B | QFU-H | 32.0 | 45.0 | 75.0 | 41.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 |
| QFU-LFH32C2525-065B | QFU-H | 32.0 | 65.0 | 108.0 | 41.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 |
| QFU-LFH38C2525-100B | QFU-H | 38.0 | 100.0 | 160.0 | 47.6 | 47.6 | 25.00 | 25.00 | 131.60 | 25.50 |
| QFU-LFH38C2525-150B | QFU-H | 38.0 | 150.0 | 310.0 | 47.6 | 47.6 | 25.00 | 25.00 | 131.60 | 25.50 |
| QFU-LFH38C2525-300B | QFU-H | 38.0 | 300.0 | 510.0 | 47.6 | 47.6 | 25.00 | 25.00 | 131.60 | 25.50 |
| QFU-LFH38C2525-500B | QFU-H | 38.0 | 500.0 | 2000.0 | 47.6 | 47.6 | 25.00 | 25.00 | 131.60 | 25.50 |
| QFU-LFK26C2525-045B | QFU-K | 26.0 | 45.0 | 110.0 | 35.6 | 25.00 | 25.00 | 119.60 | 26.00 | |
| QFU-LFK26C2525-080B | QFU-K | 26.0 | 80.0 | 180.0 | 35.6 | 25.00 | 25.00 | 119.60 | 26.00 | |
| QFU-LFK32C2525-160B | QFU-K | 32.0 | 160.0 | 400.0 | 41.6 | 25.00 | 25.00 | 125.60 | 26.00 | |
| QFU-RGH22C2525-030B | QFU-H | 22.0 | 30.0 | 45.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 49.10 |
| QFU-RGH25C2525-035B | QFU-H | 25.0 | 35.0 | 55.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 52.10 |
| QFU-RGH32C2525-045B | QFU-H | 32.0 | 45.0 | 75.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 59.10 |
| QFU-RGH32C2525-065B | QFU-H | 32.0 | 65.0 | 108.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 59.10 |
| QFU-RGH38C2525-100B | QFU-H | 38.0 | 100.0 | 160.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 65.10 |
| QFU-RGH38C2525-150B | QFU-H | 38.0 | 150.0 | 310.0 | 8.0 | 8.0 | 25.00 | 25.00 | 92.00 | 65.10 |
| QFU-RGK26C2525-045B | QFU-K | 26.0 | 45.0 | 100.0 | 8.0 | 25.00 | 25.00 | 94.00 | 52.60 | |
| QFU-RGK26C2525-080B | QFU-K | 26.0 | 80.0 | 180.0 | 8.0 | 25.00 | 25.00 | 94.00 | 52.60 | |
| QFU-RGK32C2525-160B | QFU-K | 32.0 | 160.0 | 400.0 | 8.0 | 25.00 | 25.00 | 94.00 | 58.60 |
