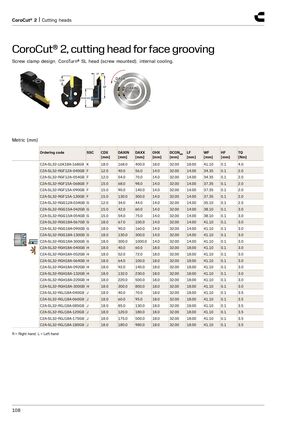

CoroCut® 2, cutting head for face grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling.
LF CDX WF
DCON MS
Metric (mm)
| Ordering code SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2A-SL32-LGK18A-168GB K | 18.0 | 168.0 | 400.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2A-SL32-RGF12A-040GB F | 12.0 | 40.0 | 56.0 | 14.0 | 32.00 | 14.00 | 34.35 | 0.1 | 2.0 |
| C2A-SL32-RGF12A-054GB F | 12.0 | 54.0 | 70.0 | 14.0 | 32.00 | 14.00 | 34.35 | 0.1 | 2.0 |
| C2A-SL32-RGF15A-068GB F | 15.0 | 68.0 | 98.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2A-SL32-RGF15A-090GB F | 15.0 | 90.0 | 140.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2A-SL32-RGF15A-130GB F | 15.0 | 130.0 | 300.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2A-SL32-RGG12A-034GB G | 12.0 | 34.0 | 44.0 | 14.0 | 32.00 | 14.00 | 35.10 | 0.1 | 2.5 |
| C2A-SL32-RGG15A-042GB G | 15.0 | 42.0 | 60.0 | 14.0 | 32.00 | 14.00 | 38.10 | 0.1 | 3.0 |
| C2A-SL32-RGG15A-054GB G | 15.0 | 54.0 | 75.0 | 14.0 | 32.00 | 14.00 | 38.10 | 0.1 | 3.0 |
| C2A-SL32-RGG18A-067GB G | 18.0 | 67.0 | 100.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGG18A-090GB G | 18.0 | 90.0 | 160.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGG18A-130GB G | 18.0 | 130.0 | 300.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGG18A-300GB G | 18.0 | 300.0 | 1000.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-040GB H | 18.0 | 40.0 | 60.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-052GB H | 18.0 | 52.0 | 72.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-064GB H | 18.0 | 64.0 | 100.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-092GB H | 18.0 | 92.0 | 140.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-132GB H | 18.0 | 132.0 | 230.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-220GB H | 18.0 | 220.0 | 500.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGH18A-300GB H | 18.0 | 300.0 | 800.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.0 |
| C2A-SL32-RGJ18A-040GB J | 18.0 | 40.0 | 70.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
| C2A-SL32-RGJ18A-060GB J | 18.0 | 60.0 | 95.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
| C2A-SL32-RGJ18A-085GB J | 18.0 | 85.0 | 130.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
| C2A-SL32-RGJ18A-120GB J | 18.0 | 120.0 | 180.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
| C2A-SL32-RGJ18A-175GB J | 18.0 | 175.0 | 500.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
| C2A-SL32-RGJ18A-180GB J | 18.0 | 180.0 | 980.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 3.5 |
R = Right hand, L = Left hand
