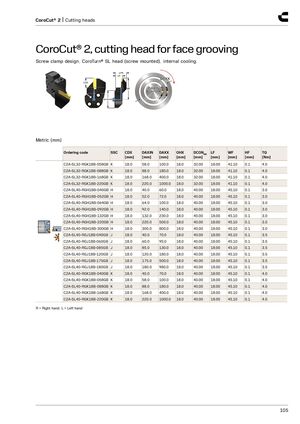

CoroCut® 2, cutting head for face grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling.
LPR LF CDX WF
DCON MS
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2A-SL32-RGK18B-058GB | K | 18.0 | 58.0 | 100.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2A-SL32-RGK18B-088GB | K | 18.0 | 88.0 | 180.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2A-SL32-RGK18B-168GB | K | 18.0 | 168.0 | 400.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2A-SL32-RGK18B-220GB | K | 18.0 | 220.0 | 1000.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2A-SL40-RGH18B-040GB | H | 18.0 | 40.0 | 60.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-052GB | H | 18.0 | 52.0 | 72.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-064GB | H | 18.0 | 64.0 | 100.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-092GB | H | 18.0 | 92.0 | 140.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-132GB | H | 18.0 | 132.0 | 230.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-220GB | H | 18.0 | 220.0 | 500.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGH18B-300GB | H | 18.0 | 300.0 | 800.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2A-SL40-RGJ18B-040GB | J | 18.0 | 40.0 | 70.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGJ18B-060GB | J | 18.0 | 60.0 | 95.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGJ18B-085GB | J | 18.0 | 85.0 | 130.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGJ18B-120GB | J | 18.0 | 120.0 | 180.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGJ18B-175GB | J | 18.0 | 175.0 | 500.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGJ18B-180GB | J | 18.0 | 180.0 | 980.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.5 |
| C2A-SL40-RGK18B-040GB | K | 18.0 | 40.0 | 70.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
| C2A-SL40-RGK18B-058GB | K | 18.0 | 58.0 | 100.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
| C2A-SL40-RGK18B-088GB | K | 18.0 | 88.0 | 180.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
| C2A-SL40-RGK18B-168GB | K | 18.0 | 168.0 | 400.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
| C2A-SL40-RGK18B-220GB | K | 18.0 | 220.0 | 1000.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
R = Right hand, L = Left hand
