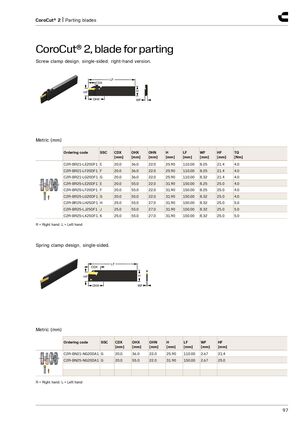

CoroCut® 2, blade for parting
Screw clamp design, single-sided, right-hand version.
LF CDX HF H OHX WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-BR21-LE20DF1 | E | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 8.25 | 21.4 | 4.0 |
| C2R-BR21-LF20DF1 | F | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 8.25 | 21.4 | 4.0 |
| C2R-BR21-LG20DF1 | G | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 8.32 | 21.4 | 4.0 |
| C2R-BR25-LE20DF1 | E | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 8.25 | 25.0 | 4.0 |
| C2R-BR25-LF20DF1 | F | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 8.25 | 25.0 | 4.0 |
| C2R-BR25-LG20DF1 | G | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 8.32 | 25.0 | 4.0 |
| C2R-BR25-LH25DF1 | H | 25.0 | 55.0 | 27.0 | 31.90 | 150.00 | 8.32 | 25.0 | 5.0 |
| C2R-BR25-LJ25DF1 | J | 25.0 | 55.0 | 27.0 | 31.90 | 150.00 | 8.32 | 25.0 | 5.0 |
| C2R-BR25-LK25DF1 | K | 25.0 | 55.0 | 27.0 | 31.90 | 150.00 | 8.32 | 25.0 | 5.0 |
R = Right hand, L = Left hand Spring clamp design, single-sided.
LF CDX HF H OHX WF
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| C2R-BN21-NG20DA1 | G | 20.0 | 36.0 | 22.0 | 25.90 | 110.00 | 2.67 | 21.4 |
| C2R-BN25-NG20DA1 | G | 20.0 | 55.0 | 22.0 | 31.90 | 150.00 | 2.67 | 25.0 |
R = Right hand, L = Left hand
