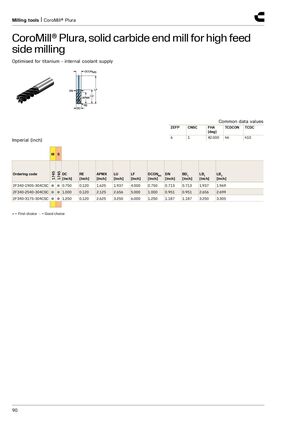

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium - internal coolant supply Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 6 1 42.000 h6 h10 Imperial (inch) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2F340-1905-304CSC ● ● 0.750 0.120 1.625 1.937 4.000 0.750 0.713 0.713 1.937 1.969 2F340-2540-304CSC ● ● 1.000 0.120 2.125 2.656 5.000 1.000 0.951 0.951 2.656 2.699 2F340-3175-304CSC ● ● 1.250 0.120 2.625 3.250 6.000 1.250 1.187 1.187 3.250 3.305 ● = First choice ○ = Good choice 90
