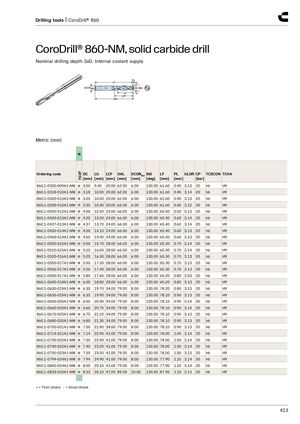

Drilling tools | CoroDrill® 860 CoroDrill® 860-NM, solid carbide drill​​ Nominal drilling depth 3xD. Internal coolant supply Metric (mm) N H10F Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 860.1-0300-009A1-NM ● 3.00 9.40 20.00 62.00 6.00 130.00 61.60 0.40 3.13 20 h6 H9 860.1-0318-010A1-NM ● 3.18 10.00 20.00 62.00 6.00 130.00 61.60 0.40 3.14 20 h6 H9 860.1-0320-010A1-NM ● 3.20 10.00 20.00 62.00 6.00 130.00 61.60 0.40 3.13 20 h6 H9 860.1-0330-010A1-NM ● 3.30 10.30 20.00 62.00 6.00 130.00 61.60 0.40 3.12 20 h6 H9 860.1-0400-012A1-NM ● 4.00 12.50 24.00 66.00 6.00 130.00 65.50 0.50 3.13 20 h6 H9 860.1-0420-013A1-NM ● 4.20 13.20 24.00 66.00 6.00 130.00 65.40 0.60 3.14 20 h6 H9 860.1-0437-013A1-NM ● 4.37 13.70 24.00 66.00 6.00 130.00 65.40 0.60 3.14 20 h6 H9 860.1-0450-014A1-NM ● 4.50 14.10 24.00 66.00 6.00 130.00 65.40 0.60 3.13 20 h6 H9 860.1-0460-014A1-NM ● 4.60 14.40 24.00 66.00 6.00 130.00 65.40 0.60 3.13 20 h6 H9 860.1-0500-015A1-NM ● 5.00 15.70 28.00 66.00 6.00 130.00 65.30 0.70 3.14 20 h6 H9 860.1-0510-015A1-NM ● 5.10 16.00 28.00 66.00 6.00 130.00 65.30 0.70 3.14 20 h6 H9 860.1-0520-016A1-NM ● 5.20 16.30 28.00 66.00 6.00 130.00 65.30 0.70 3.13 20 h6 H9 860.1-0550-017A1-NM ● 5.50 17.20 28.00 66.00 6.00 130.00 65.30 0.70 3.13 20 h6 H9 860.1-0556-017A1-NM ● 5.56 17.40 28.00 66.00 6.00 130.00 65.30 0.70 3.13 20 h6 H9 860.1-0580-017A1-NM ● 5.80 17.60 28.00 66.00 6.00 130.00 65.20 0.80 3.03 20 h6 H9 860.1-0600-018A1-NM ● 6.00 18.80 28.00 66.00 6.00 130.00 65.20 0.80 3.13 20 h6 H9 860.1-0630-019A1-NM ● 6.30 19.70 34.00 79.00 8.00 130.00 78.20 0.80 3.13 20 h6 H9 860.1-0635-019A1-NM ● 6.35 19.90 34.00 79.00 8.00 130.00 78.10 0.90 3.13 20 h6 H9 860.1-0650-020A1-NM ● 6.50 20.40 34.00 79.00 8.00 130.00 78.10 0.90 3.14 20 h6 H9 860.1-0660-020A1-NM ● 6.60 20.70 34.00 79.00 8.00 130.00 78.10 0.90 3.14 20 h6 H9 860.1-0675-020A1-NM ● 6.75 21.10 34.00 79.00 8.00 130.00 78.10 0.90 3.13 20 h6 H9 860.1-0680-020A1-NM ● 6.80 21.30 34.00 79.00 8.00 130.00 78.10 0.90 3.13 20 h6 H9 860.1-0700-021A1-NM ● 7.00 21.90 34.00 79.00 8.00 130.00 78.10 0.90 3.13 20 h6 H9 860.1-0714-021A1-NM ● 7.14 22.40 41.00 79.00 8.00 130.00 78.00 1.00 3.14 20 h6 H9 860.1-0730-022A1-NM ● 7.30 22.90 41.00 79.00 8.00 130.00 78.00 1.00 3.14 20 h6 H9 860.1-0740-022A1-NM ● 7.40 23.20 41.00 79.00 8.00 130.00 78.00 1.00 3.14 20 h6 H9 860.1-0750-023A1-NM ● 7.50 23.50 41.00 79.00 8.00 130.00 78.00 1.00 3.13 20 h6 H9 860.1-0794-024A1-NM ● 7.94 24.90 41.00 79.00 8.00 130.00 77.90 1.10 3.14 20 h6 H9 860.1-0800-024A1-NM ● 8.00 25.10 41.00 79.00 8.00 130.00 77.90 1.10 3.14 20 h6 H9 860.1-0833-025A1-NM ● 8.33 26.10 47.00 89.00 10.00 130.00 87.90 1.10 3.13 20 h6 H9 ● = First choice ○ = Good choice 413
