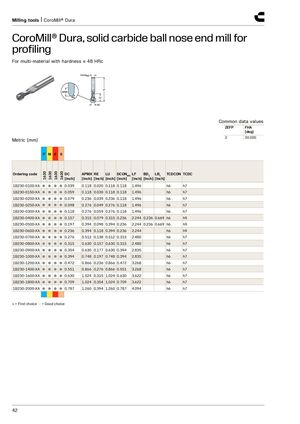

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide ball nose end mill for profiling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP FHA [deg] 2 30.000 Metric (mm) P M K S 1630 1630 1630 1630 Ordering code DC APMX RE LU DCONMS LF BD 1 LB 1 _ _ TCDCON TCDC [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 1B230-0100-XA ● ● ● ● 0.039 0.118 0.020 0.118 0.118 1.496 h6 h7 1B230-0150-XA ● ● ● ● 0.059 0.118 0.030 0.118 0.118 1.496 h6 h7 1B230-0200-XA ● ● ● ● 0.079 0.236 0.039 0.236 0.118 1.496 h6 h7 1B230-0250-XA ● ● ● ● 0.098 0.276 0.049 0.276 0.118 1.496 h6 h7 1B230-0300-XA ● ● ● ● 0.118 0.276 0.059 0.276 0.118 1.496 h6 h7 1B230-0400-XA ● ● ● ● 0.157 0.315 0.079 0.315 0.236 2.244 0.236 0.669 h6 h9 1B230-0500-XA ● ● ● ● 0.197 0.394 0.098 0.394 0.236 2.244 0.236 0.669 h6 h9 1B230-0600-XA ● ● ● ● 0.236 0.394 0.118 0.394 0.236 2.244 h6 h9 1B230-0700-XA ● ● ● ● 0.276 0.512 0.138 0.512 0.315 2.480 h6 h7 1B230-0800-XA ● ● ● ● 0.315 0.630 0.157 0.630 0.315 2.480 h6 h7 1B230-0900-XA ● ● ● ● 0.354 0.630 0.177 0.630 0.394 2.835 h6 h7 1B230-1000-XA ● ● ● ● 0.394 0.748 0.197 0.748 0.394 2.835 h6 h7 1B230-1200-XA ● ● ● ● 0.472 0.866 0.236 0.866 0.472 3.268 h6 h7 1B230-1400-XA ● ● ● ● 0.551 0.866 0.276 0.866 0.551 3.268 h6 h7 1B230-1600-XA ● ● ● ● 0.630 1.024 0.315 1.024 0.630 3.622 h6 h7 1B230-1800-XA ● ● ● ● 0.709 1.024 0.354 1.024 0.709 3.622 h6 h7 1B230-2000-XA ● ● ● ● 0.787 1.260 0.394 1.260 0.787 4.094 h6 h7 ● = First choice ○ = Good choice 42
