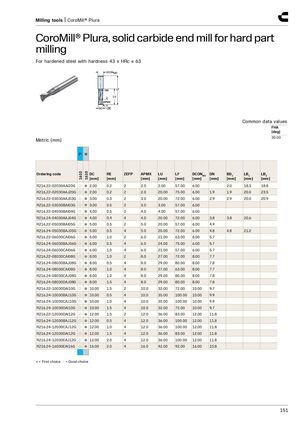

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for hard part milling​​ For hardened steel with hardness 43 ≤ HRc ≤ 63 Common data values FHA [deg] 30.00 Metric (mm) P H 1610 1610 Ordering code DC RE ZEFP APMX LU LF DCONMS DN BD 1 _ LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] R216.22-02030AAI20G ○ ● 2.00 0.2 2 2.0 2.00 57.00 6.00 2.0 18.3 18.8 R216.22-02030AAJ20G ○ ● 2.00 0.2 2 2.0 20.00 75.00 6.00 1.9 1.9 20.0 23.5 R216.22-03030AAJ03G ○ ● 3.00 0.3 2 3.0 20.00 72.00 6.00 2.9 2.9 20.0 20.9 R216.22-03030BAI03G ○ ● 3.00 0.5 2 3.0 3.00 57.00 6.00 R216.22-04030BAI04G ○ ● 4.00 0.5 2 4.0 4.00 57.00 6.00 R216.24-04030AAJ04G ○ ● 4.00 0.4 4 4.0 20.00 72.00 6.00 3.8 3.8 20.6 R216.22-05030BAI05G ○ ● 5.00 0.5 2 5.0 20.00 57.00 6.00 4.9 R216.24-05030BAJ05G ○ ● 5.00 0.5 4 5.0 20.00 72.00 6.00 4.8 4.8 21.2 R216.22-06030CAI06G ○ ● 6.00 1.0 2 6.0 21.00 63.00 6.00 5.7 R216.24-06030BAJ06G ○ ● 6.00 0.5 4 6.0 24.00 75.00 6.00 5.7 R216.24-06030CAI06G ○ ● 6.00 1.0 4 6.0 21.00 57.00 6.00 5.7 R216.22-08030CAI08G ○ ● 8.00 1.0 2 8.0 27.00 72.00 8.00 7.7 R216.24-08030BAJ08G ○ ● 8.00 0.5 4 8.0 29.00 80.00 8.00 7.8 R216.24-08030CAI08G ○ ● 8.00 1.0 4 8.0 27.00 63.00 8.00 7.7 R216.24-08030CAJ08G ○ ● 8.00 1.0 4 8.0 29.00 80.00 8.00 7.8 R216.24-08030DAJ08G ○ ● 8.00 1.5 4 8.0 29.00 80.00 8.00 7.8 R216.22-10030DAI10G ○ ● 10.00 1.5 2 10.0 32.00 72.00 10.00 9.7 R216.24-10030BAJ10G ○ ● 10.00 0.5 4 10.0 35.00 100.00 10.00 9.9 R216.24-10030CAJ10G ○ ● 10.00 1.0 4 10.0 35.00 100.00 10.00 9.9 R216.24-10030DAI10G ○ ● 10.00 1.5 4 10.0 32.00 72.00 10.00 9.7 R216.22-12030DAI12G ○ ● 12.00 1.5 2 12.0 36.00 83.00 12.00 11.8 R216.24-12030BAJ12G ○ ● 12.00 0.5 4 12.0 36.00 100.00 12.00 11.8 R216.24-12030CAJ12G ○ ● 12.00 1.0 4 12.0 36.00 100.00 12.00 11.8 R216.24-12030DAI12G ○ ● 12.00 1.5 4 12.0 36.00 83.00 12.00 11.8 R216.24-12030EAJ12G ○ ● 12.00 2.0 4 12.0 36.00 100.00 12.00 11.8 R216.24-16030EAI16G ○ ● 16.00 2.0 4 16.0 42.00 92.00 16.00 15.8 ● = First choice ○ = Good choice 151
