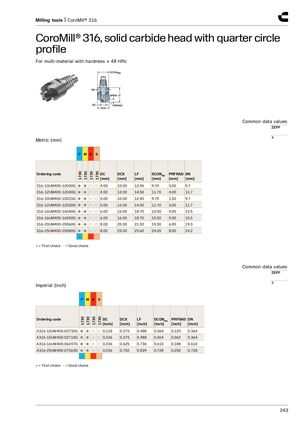

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head with quarter circle profile​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP 4 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC DCX LF DCONMS PRFRAD DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10UM400-10030G ● ● ○ ○ 4.00 10.00 12.40 9.70 3.00 9.7 316-12UM400-12040G ● ● ○ ○ 4.00 12.00 14.50 11.70 4.00 11.7 316-10UM400-10015G ● ● ○ ○ 5.00 10.00 12.40 9.70 1.50 9.7 316-12UM400-12030G ● ● ○ ○ 5.00 12.00 14.50 11.70 3.00 11.7 316-16UM400-16040G ● ● ○ ○ 6.00 16.00 18.70 15.50 4.00 15.5 316-16UM400-16050G ● ● ○ ○ 6.00 16.00 18.70 15.50 5.00 15.5 316-20UM400-20060G ● ● ○ ○ 8.00 20.00 21.30 19.30 6.00 19.3 316-25UM400-25080G ● ● ○ ○ 8.00 25.00 25.60 24.20 8.00 24.2 ● = First choice ○ = Good choice Common data values ZEFP 4 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC DCX LF DCONMS PRFRAD DN [inch] [inch] [inch] [inch] [inch] [inch] A316-10UM400-03732G ● ● ○ ○ 0.118 0.375 0.488 0.364 0.125 0.364 A316-10UM400-03715G ● ● ○ ○ 0.236 0.375 0.488 0.364 0.062 0.364 A316-16UM400-06247G ● ● ○ ○ 0.236 0.625 0.736 0.610 0.188 0.610 A316-20UM400-07563G ● ● ○ ○ 0.236 0.750 0.839 0.728 0.250 0.728 ● = First choice ○ = Good choice 243
