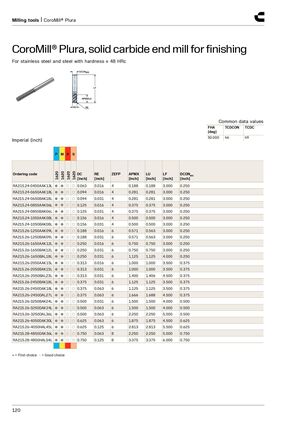

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for finishing​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values FHA TCDCON TCDC [deg] 50.000 h6 h9 Imperial (inch) P M K S 1620 1620 1620 1620 Ordering code DC RE ZEFP APMX LU LF DCONMS [inch] [inch] [inch] [inch] [inch] [inch] RA215.24-0450AAK13L ● ● ○ ○ 0.063 0.016 4 0.188 0.188 3.000 0.250 RA215.24-0650AAK18L ● ● ○ ○ 0.094 0.016 4 0.281 0.281 3.000 0.250 RA215.24-0650BAK18L ● ● ○ ○ 0.094 0.031 4 0.281 0.281 3.000 0.250 RA215.24-0850AAK06L ● ● ○ ○ 0.125 0.016 4 0.375 0.375 3.000 0.250 RA215.24-0850BAK06L ● ● ○ ○ 0.125 0.031 4 0.375 0.375 3.000 0.250 RA215.24-1050AAK08L ● ● ○ ○ 0.156 0.016 4 0.500 0.500 3.000 0.250 RA215.24-1050BAK08L ● ● ○ ○ 0.156 0.031 4 0.500 0.500 3.000 0.250 RA215.26-1250AAK09L ● ● ○ ○ 0.188 0.016 6 0.571 0.563 3.000 0.250 RA215.26-1250BAK09L ● ● ○ ○ 0.188 0.031 6 0.571 0.563 3.000 0.250 RA215.26-1650AAK12L ● ● ○ ○ 0.250 0.016 6 0.750 0.750 3.000 0.250 RA215.26-1650BAK12L ● ● ○ ○ 0.250 0.031 6 0.750 0.750 3.000 0.250 RA215.26-1650BAL18L ● ● ○ ○ 0.250 0.031 6 1.125 1.125 4.000 0.250 RA215.26-2050AAK15L ● ● ○ ○ 0.313 0.016 6 1.000 1.000 3.500 0.375 RA215.26-2050BAK15L ● ● ○ ○ 0.313 0.031 6 1.000 1.000 3.500 0.375 RA215.26-2050BAL23L ● ● ○ ○ 0.313 0.031 6 1.400 1.406 4.500 0.375 RA215.26-2450BAK18L ● ● ○ ○ 0.375 0.031 6 1.125 1.125 3.500 0.375 RA215.26-2450DAK18L ● ● ○ ○ 0.375 0.063 6 1.125 1.125 3.500 0.375 RA215.26-2450DAL27L ● ● ○ ○ 0.375 0.063 6 1.666 1.688 4.500 0.375 RA215.26-3250BAK24L ● ● ○ ○ 0.500 0.031 6 1.500 1.500 4.000 0.500 RA215.26-3250DAK24L ● ● ○ ○ 0.500 0.063 6 1.500 1.500 4.000 0.500 RA215.26-3250DAL36L ● ● ○ ○ 0.500 0.063 6 2.250 2.250 5.000 0.500 RA215.26-4050DAK30L ● ● ○ ○ 0.625 0.063 6 1.875 1.875 4.500 0.625 RA215.26-4050HAL45L ● ● ○ ○ 0.625 0.125 6 2.813 2.813 5.500 0.625 RA215.28-4850DAK36L ● ● ○ ○ 0.750 0.063 8 2.250 2.250 5.000 0.750 RA215.28-4850HAL54L ● ● ○ ○ 0.750 0.125 8 3.375 3.375 6.000 0.750 ● = First choice ○ = Good choice 120
