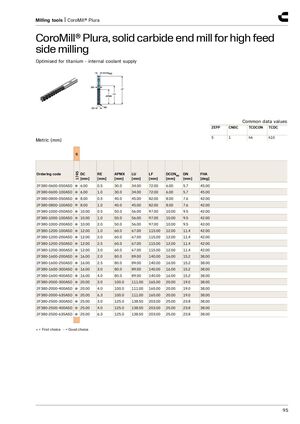

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed side milling​​ Optimised for titanium - internal coolant supply Common data values ZEFP CNSC TCDCON TCDC 5 1 h6 h10 Metric (mm) S 1745 Ordering code DC RE APMX LU LF DCONMS DN FHA [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] 2F380-0600-050ASD ● 6.00 0.5 30.0 34.00 72.00 6.00 5.7 45.00 2F380-0600-100ASD ● 6.00 1.0 30.0 34.00 72.00 6.00 5.7 45.00 2F380-0800-050ASD ● 8.00 0.5 40.0 45.00 82.00 8.00 7.6 42.00 2F380-0800-100ASD ● 8.00 1.0 40.0 45.00 82.00 8.00 7.6 42.00 2F380-1000-050ASD ● 10.00 0.5 50.0 56.00 97.00 10.00 9.5 42.00 2F380-1000-100ASD ● 10.00 1.0 50.0 56.00 97.00 10.00 9.5 42.00 2F380-1000-200ASD ● 10.00 2.0 50.0 56.00 97.00 10.00 9.5 42.00 2F380-1200-100ASD ● 12.00 1.0 60.0 67.00 115.00 12.00 11.4 42.00 2F380-1200-200ASD ● 12.00 2.0 60.0 67.00 115.00 12.00 11.4 42.00 2F380-1200-250ASD ● 12.00 2.5 60.0 67.00 115.00 12.00 11.4 42.00 2F380-1200-300ASD ● 12.00 3.0 60.0 67.00 115.00 12.00 11.4 42.00 2F380-1600-200ASD ● 16.00 2.0 80.0 89.00 140.00 16.00 15.2 38.00 2F380-1600-250ASD ● 16.00 2.5 80.0 89.00 140.00 16.00 15.2 38.00 2F380-1600-300ASD ● 16.00 3.0 80.0 89.00 140.00 16.00 15.2 38.00 2F380-1600-400ASD ● 16.00 4.0 80.0 89.00 140.00 16.00 15.2 38.00 2F380-2000-300ASD ● 20.00 3.0 100.0 111.00 165.00 20.00 19.0 38.00 2F380-2000-400ASD ● 20.00 4.0 100.0 111.00 165.00 20.00 19.0 38.00 2F380-2000-635ASD ● 20.00 6.3 100.0 111.00 165.00 20.00 19.0 38.00 2F380-2500-300ASD ● 25.00 3.0 125.0 138.50 203.00 25.00 23.8 38.00 2F380-2500-400ASD ● 25.00 4.0 125.0 138.50 203.00 25.00 23.8 38.00 2F380-2500-635ASD ● 25.00 6.3 125.0 138.50 203.00 25.00 23.8 38.00 ● = First choice ○ = Good choice 95
