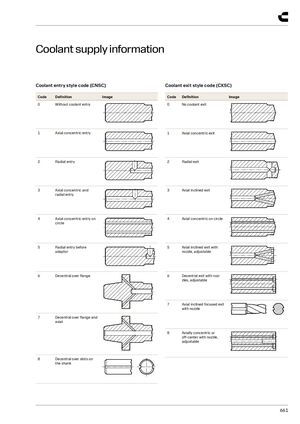

General information | Coolant supply information Coolant supply information Coolant entry style code (CNSC) Coolant exit style code (CXSC) Code Definition Image Code Definition Image 0 Without coolant entry 0 No coolant exit 1 Axial concentric entry 1 Axial concentric exit 2 Radial entry 2 Radial exit 3 Axial concentric and 3 Axial inclined exit radial entry 4 Axial concentric entry on 4 Axial concentric on circle circle 5 Radial entry before 5 Axial inclined exit with adaptor nozzle, adjustable 6 Decentral over flange 6 Decentral exit with noz- zles, adjustable 7 Axial inclined focused exit with nozzle 7 Decentral over flange and axial 8 Axially concentric or off-center with nozzle, adjustable 8 Decentral over slots on the shank 661
