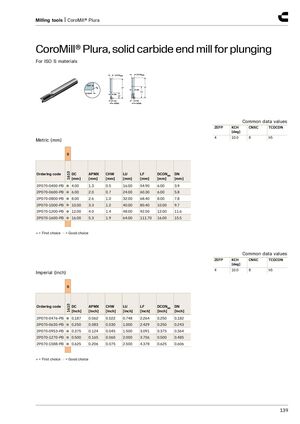

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for plunging​​ For ISO S materials Common data values ZEFP KCH CNSC TCDCON [deg] 4 10.0 8 h5 Metric (mm) S 1610 Ordering code DC APMX CHW LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2P070-0400-PB ● 4.00 1.3 0.5 16.00 54.90 6.00 3.9 2P070-0600-PB ● 6.00 2.0 0.7 24.00 60.30 6.00 5.8 2P070-0800-PB ● 8.00 2.6 1.0 32.00 68.40 8.00 7.8 2P070-1000-PB ● 10.00 3.3 1.2 40.00 80.40 10.00 9.7 2P070-1200-PB ● 12.00 4.0 1.4 48.00 92.50 12.00 11.6 2P070-1600-PB ● 16.00 5.3 1.9 64.00 111.70 16.00 15.5 ● = First choice ○ = Good choice Common data values ZEFP KCH CNSC TCDCON [deg] 4 10.0 8 h5 Imperial (inch) S 1610 Ordering code DC APMX CHW LU LF DCONMS DN [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2P070-0476-PB ● 0.187 0.062 0.022 0.748 2.264 0.250 0.182 2P070-0635-PB ● 0.250 0.083 0.030 1.000 2.429 0.250 0.243 2P070-0953-PB ● 0.375 0.124 0.045 1.500 3.091 0.375 0.364 2P070-1270-PB ● 0.500 0.165 0.060 2.000 3.756 0.500 0.485 2P070-1588-PB ● 0.625 0.206 0.075 2.500 4.378 0.625 0.606 ● = First choice ○ = Good choice 139
