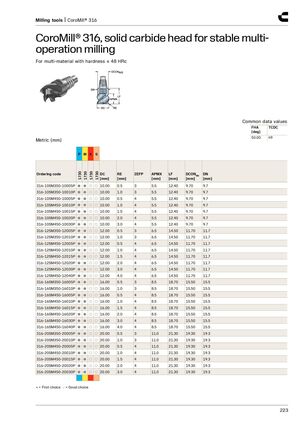

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for stable multi- operation milling​​ For multi-material with hardness ≤ 48 HRc Common data values FHA TCDC [deg] 50.00 h9 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SM350-10005P ● ● ○ ○ 10.00 0.5 3 5.5 12.40 9.70 9.7 316-10SM350-10010P ● ● ○ ○ 10.00 1.0 3 5.5 12.40 9.70 9.7 316-10SM450-10005P ● ● ○ ○ 10.00 0.5 4 5.5 12.40 9.70 9.7 316-10SM450-10010P ● ● ○ ○ 10.00 1.0 4 5.5 12.40 9.70 9.7 316-10SM450-10015P ● ● ○ ○ 10.00 1.5 4 5.5 12.40 9.70 9.7 316-10SM450-10020P ● ● ○ ○ 10.00 2.0 4 5.5 12.40 9.70 9.7 316-10SM450-10030P ● ● ○ ○ 10.00 3.0 4 5.5 12.40 9.70 9.7 316-12SM350-12005P ● ● ○ ○ 12.00 0.5 3 6.5 14.50 11.70 11.7 316-12SM350-12010P ● ● ○ ○ 12.00 1.0 3 6.5 14.50 11.70 11.7 316-12SM450-12005P ● ● ○ ○ 12.00 0.5 4 6.5 14.50 11.70 11.7 316-12SM450-12010P ● ● ○ ○ 12.00 1.0 4 6.5 14.50 11.70 11.7 316-12SM450-12015P ● ● ○ ○ 12.00 1.5 4 6.5 14.50 11.70 11.7 316-12SM450-12020P ● ● ○ ○ 12.00 2.0 4 6.5 14.50 11.70 11.7 316-12SM450-12030P ● ● ○ ○ 12.00 3.0 4 6.5 14.50 11.70 11.7 316-12SM450-12040P ● ● ○ ○ 12.00 4.0 4 6.5 14.50 11.70 11.7 316-16SM350-16005P ● ● ○ ○ 16.00 0.5 3 8.5 18.70 15.50 15.5 316-16SM350-16010P ● ● ○ ○ 16.00 1.0 3 8.5 18.70 15.50 15.5 316-16SM450-16005P ● ● ○ ○ 16.00 0.5 4 8.5 18.70 15.50 15.5 316-16SM450-16010P ● ● ○ ○ 16.00 1.0 4 8.5 18.70 15.50 15.5 316-16SM450-16015P ● ● ○ ○ 16.00 1.5 4 8.5 18.70 15.50 15.5 316-16SM450-16020P ● ● ○ ○ 16.00 2.0 4 8.5 18.70 15.50 15.5 316-16SM450-16030P ● ● ○ ○ 16.00 3.0 4 8.5 18.70 15.50 15.5 316-16SM450-16040P ● ● ○ ○ 16.00 4.0 4 8.5 18.70 15.50 15.5 316-20SM350-20005P ● ● ○ ○ 20.00 0.5 3 11.0 21.30 19.30 19.3 316-20SM350-20010P ● ● ○ ○ 20.00 1.0 3 11.0 21.30 19.30 19.3 316-20SM450-20005P ● ● ○ ○ 20.00 0.5 4 11.0 21.30 19.30 19.3 316-20SM450-20010P ● ● ○ ○ 20.00 1.0 4 11.0 21.30 19.30 19.3 316-20SM450-20015P ● ● ○ ○ 20.00 1.5 4 11.0 21.30 19.30 19.3 316-20SM450-20020P ● ● ○ ○ 20.00 2.0 4 11.0 21.30 19.30 19.3 316-20SM450-20030P ● ● ○ ○ 20.00 3.0 4 11.0 21.30 19.30 19.3 ● = First choice ○ = Good choice 223
