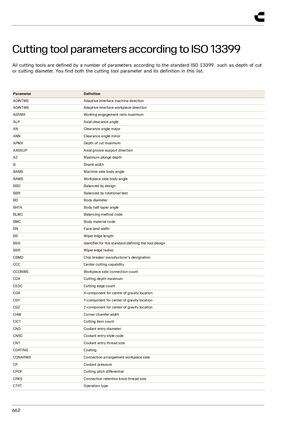

General information | Cutting tool parameters according to ISO 13399 Cutting tool parameters according to ISO 13399 All cutting tools are defined by a number of parameters according to the standard ISO 13399, such as depth of cut or cutting diameter. You find both the cutting tool parameter and its definition in this list. Parameter Definition ADINTMS Adaptive interface machine direction ADINTWS Adaptive interface workpiece direction AERMX Working engagement ratio maximum ALP Axial clearance angle AN Clearance angle major ANN Clearance angle minor APMX Depth of cut maximum AXGSUP Axial groove support direction AZ Maximum plunge depth B Shank width BAMS Machine side body angle BAWS Workpiece side body angle BBD Balanced by design BBR Balanced by rotational test BD Body diameter BHTA Body half taper angle BLMC Balancing method code BMC Body material code BN Face land width BS Wiper edge length BSG Identifier for the standard defining the tool design BSR Wiper edge radius CBMD Chip breaker manufacturer's designation CCC Center cutting capability CCONWS Workpiece side connection count CDX Cutting depth maximum CEDC Cutting edge count CGX X-component for center of gravity location CGY Y-component for center of gravity location CGZ Z-component for center of gravity location CHW Corner chamfer width CICT Cutting item count CND Coolant entry diameter CNSC Coolant entry style code CNT Coolant entry thread size COATING Coating CONARWS Connection arrangement workpiece side CP Coolant pressure CPDF Cutting pitch differential CRKS Connection retention knob thread size CTPT Operation type 662
