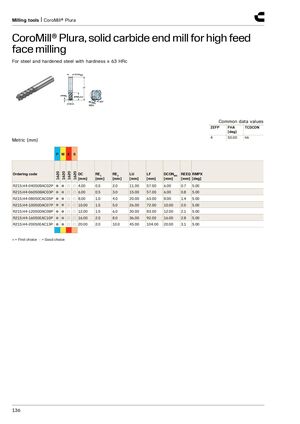

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for high feed face milling​​ For steel and hardened steel with hardness ≤ 63 HRc Common data values ZEFP FHA TCDCON [deg] 4 50.00 h6 Metric (mm) P M K S 1620 1620 1620 1620 Ordering code DC RE 1 _ RE 2 _ LU LF DCONMS REEQ RMPX [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] R215.H4-04050BAC02P ● ● ○ ○ 4.00 0.5 2.0 11.00 57.00 6.00 0.7 5.00 R215.H4-06050BAC03P ● ● ○ ○ 6.00 0.5 3.0 15.00 57.00 6.00 0.8 5.00 R215.H4-08050CAC05P ● ● ○ ○ 8.00 1.0 4.0 20.00 63.00 8.00 1.4 5.00 R215.H4-10050DAC07P ● ● ○ ○ 10.00 1.5 5.0 26.00 72.00 10.00 2.0 5.00 R215.H4-12050DAC08P ● ● ○ ○ 12.00 1.5 6.0 30.00 83.00 12.00 2.1 5.00 R215.H4-16050EAC10P ● ● ○ ○ 16.00 2.0 8.0 36.00 92.00 16.00 2.8 5.00 R215.H4-20050EAC13P ● ● ○ ○ 20.00 2.0 10.0 45.00 104.00 20.00 3.1 5.00 ● = First choice ○ = Good choice 136
