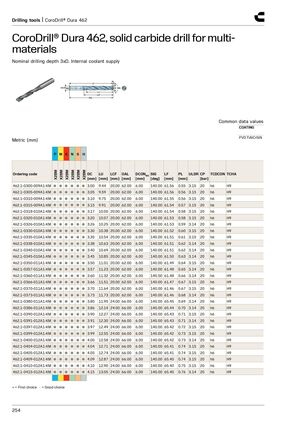

Drilling tools | CoroDrill® Dura 462 CoroDrill® Dura 462, solid carbide drill for multi- materials​​ Nominal drilling depth 3xD. Internal coolant supply Common data values COATING PVD TiAlCrSiN Metric (mm) P M K N S H X2BM X2BM X2BM X2BM X2BM X2BM Ordering code DC LU LCF OAL DCONMS SIG LF PL ULDR CP TCDCON TCHA [mm] [mm] [mm] [mm] [mm] [deg] [mm] [mm] [bar] 462.1-0300-009A1-XM ● ● ● ● ● ● 3.00 9.44 20.00 62.00 6.00 140.00 61.56 0.55 3.15 20 h6 H9 462.1-0305-009A1-XM ● ● ● ● ● ● 3.05 9.59 20.00 62.00 6.00 140.00 61.56 0.56 3.15 20 h6 H9 462.1-0310-009A1-XM ● ● ● ● ● ● 3.10 9.75 20.00 62.00 6.00 140.00 61.55 0.56 3.15 20 h6 H9 462.1-0315-009A1-XM ● ● ● ● ● ● 3.15 9.91 20.00 62.00 6.00 140.00 61.54 0.57 3.15 20 h6 H9 462.1-0318-010A1-XM ● ● ● ● ● ● 3.17 10.00 20.00 62.00 6.00 140.00 61.54 0.58 3.15 20 h6 H9 462.1-0320-010A1-XM ● ● ● ● ● ● 3.20 10.07 20.00 62.00 6.00 140.00 61.53 0.58 3.15 20 h6 H9 462.1-0326-010A1-XM ● ● ● ● ● ● 3.26 10.25 20.00 62.00 6.00 140.00 61.53 0.59 3.14 20 h6 H9 462.1-0330-010A1-XM ● ● ● ● ● ● 3.30 10.38 20.00 62.00 6.00 140.00 61.52 0.60 3.15 20 h6 H9 462.1-0335-010A1-XM ● ● ● ● ● ● 3.35 10.54 20.00 62.00 6.00 140.00 61.51 0.61 3.15 20 h6 H9 462.1-0338-010A1-XM ● ● ● ● ● ● 3.38 10.63 20.00 62.00 6.00 140.00 61.51 0.62 3.14 20 h6 H9 462.1-0340-010A1-XM ● ● ● ● ● ● 3.40 10.69 20.00 62.00 6.00 140.00 61.51 0.62 3.14 20 h6 H9 462.1-0345-010A1-XM ● ● ● ● ● ● 3.45 10.85 20.00 62.00 6.00 140.00 61.50 0.63 3.14 20 h6 H9 462.1-0350-011A1-XM ● ● ● ● ● ● 3.50 11.01 20.00 62.00 6.00 140.00 61.49 0.64 3.15 20 h6 H9 462.1-0357-011A1-XM ● ● ● ● ● ● 3.57 11.23 20.00 62.00 6.00 140.00 61.48 0.65 3.14 20 h6 H9 462.1-0360-011A1-XM ● ● ● ● ● ● 3.60 11.32 20.00 62.00 6.00 140.00 61.48 0.66 3.14 20 h6 H9 462.1-0366-011A1-XM ● ● ● ● ● ● 3.66 11.51 20.00 62.00 6.00 140.00 61.47 0.67 3.15 20 h6 H9 462.1-0370-011A1-XM ● ● ● ● ● ● 3.70 11.64 20.00 62.00 6.00 140.00 61.46 0.67 3.15 20 h6 H9 462.1-0373-011A1-XM ● ● ● ● ● ● 3.73 11.73 20.00 62.00 6.00 140.00 61.46 0.68 3.14 20 h6 H9 462.1-0380-011A1-XM ● ● ● ● ● ● 3.80 11.95 24.00 66.00 6.00 140.00 65.45 0.69 3.14 20 h6 H9 462.1-0386-011A1-XM ● ● ● ● ● ● 3.86 12.14 24.00 66.00 6.00 140.00 65.44 0.70 3.14 20 h6 H9 462.1-0390-012A1-XM ● ● ● ● ● ● 3.90 12.27 24.00 66.00 6.00 140.00 65.43 0.71 3.15 20 h6 H9 462.1-0391-012A1-XM ● ● ● ● ● ● 3.91 12.30 24.00 66.00 6.00 140.00 65.43 0.71 3.14 20 h6 H9 462.1-0397-012A1-XM ● ● ● ● ● ● 3.97 12.49 24.00 66.00 6.00 140.00 65.42 0.72 3.15 20 h6 H9 462.1-0399-012A1-XM ● ● ● ● ● ● 3.99 12.55 24.00 66.00 6.00 140.00 65.42 0.73 3.15 20 h6 H9 462.1-0400-012A1-XM ● ● ● ● ● ● 4.00 12.58 24.00 66.00 6.00 140.00 65.42 0.73 3.14 20 h6 H9 462.1-0404-012A1-XM ● ● ● ● ● ● 4.04 12.71 24.00 66.00 6.00 140.00 65.41 0.74 3.15 20 h6 H9 462.1-0405-012A1-XM ● ● ● ● ● ● 4.05 12.74 24.00 66.00 6.00 140.00 65.41 0.74 3.15 20 h6 H9 462.1-0409-012A1-XM ● ● ● ● ● ● 4.09 12.87 24.00 66.00 6.00 140.00 65.40 0.74 3.15 20 h6 H9 462.1-0410-012A1-XM ● ● ● ● ● ● 4.10 12.90 24.00 66.00 6.00 140.00 65.40 0.75 3.15 20 h6 H9 462.1-0415-012A1-XM ● ● ● ● ● ● 4.15 13.05 24.00 66.00 6.00 140.00 65.40 0.76 3.14 20 h6 H9 ● = First choice ○ = Good choice 254
