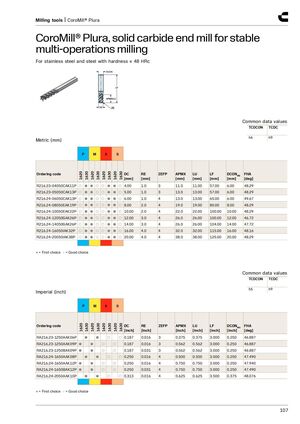

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for stable multi-operations milling​​ For stainless steel and steel with hardness ≤ 48 HRc Common data values TCDCON TCDC h6 h9 Metric (mm) P M K S 1620 1630 1620 1630 1620 1630 1620 1630 Ordering code DC RE ZEFP APMX LU LF DCONMS FHA [mm] [mm] [mm] [mm] [mm] [mm] [deg] R216.23-04050CAK11P ○ ● ● ○ ○ ● ● ○ 4.00 1.0 3 11.0 11.00 57.00 6.00 48.29 R216.23-05050CAK13P ○ ● ● ○ ○ ● ● ○ 5.00 1.0 3 13.0 13.00 57.00 6.00 48.29 R216.24-06050CAK13P ○ ● ● ○ ○ ● ● ○ 6.00 1.0 4 13.0 13.00 65.00 6.00 49.67 R216.24-08050EAK19P ○ ● ● ○ ○ ● ● ○ 8.00 2.0 4 19.0 19.00 80.00 8.00 48.29 R216.24-10050EAK22P ○ ● ● ○ ○ ● ● ○ 10.00 2.0 4 22.0 22.00 100.00 10.00 48.29 R216.24-12050GAK26P ○ ● ● ○ ○ ● ● ○ 12.00 3.0 4 26.0 26.00 100.00 12.00 46.72 R216.24-14050GAK26P ○ ● ● ○ ○ ● ● ○ 14.00 3.0 4 26.0 26.00 104.00 14.00 47.72 R216.24-16050IAK32P ○ ● ● ○ ○ ● ● ○ 16.00 4.0 4 32.0 32.00 115.00 16.00 48.16 R216.24-20050IAK38P ○ ● ● ○ ○ ● ● ○ 20.00 4.0 4 38.0 38.00 125.00 20.00 48.29 ● = First choice ○ = Good choice Common data values TCDCON TCDC h6 h9 Imperial (inch) P M K S 1620 1630 1620 1630 1620 1630 1620 1630 Ordering code DC RE ZEFP APMX LU LF DCONMS FHA [inch] [inch] [inch] [inch] [inch] [inch] [deg] RA216.23-1250AAK06P ● ● ○ ○ 0.187 0.016 3 0.375 0.375 3.000 0.250 46.887 RA216.23-1250AAK09P ● ● ○ ○ 0.187 0.016 3 0.562 0.562 3.000 0.250 46.887 RA216.23-1250BAK09P ● ● ○ ○ 0.187 0.031 3 0.562 0.562 3.000 0.250 46.887 RA216.24-1650AAK08P ● ● ○ ○ 0.250 0.016 4 0.500 0.500 3.000 0.250 47.490 RA216.24-1650AAK12P ● ● ○ ○ 0.250 0.016 4 0.750 0.750 3.000 0.250 47.940 RA216.24-1650BAK12P ● ● ○ ○ 0.250 0.031 4 0.750 0.750 3.000 0.250 47.490 RA216.24-2050AAK10P ● ● ○ ○ 0.313 0.016 4 0.625 0.625 3.500 0.375 48.076 ● = First choice ○ = Good choice 107
