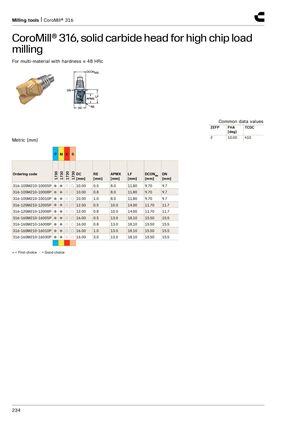

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for high chip load milling​​ For multi-material with hardness ≤ 48 HRc Common data values ZEFP FHA TCDC [deg] 2 10.00 h10 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SM210-10005P ● ● ○ ○ 10.00 0.5 8.0 11.80 9.70 9.7 316-10SM210-10008P ● ● ○ ○ 10.00 0.8 8.0 11.80 9.70 9.7 316-10SM210-10010P ● ● ○ ○ 10.00 1.0 8.0 11.80 9.70 9.7 316-12SM210-12005P ● ● ○ ○ 12.00 0.5 10.0 14.00 11.70 11.7 316-12SM210-12008P ● ● ○ ○ 12.00 0.8 10.0 14.00 11.70 11.7 316-16SM210-16005P ● ● ○ ○ 16.00 0.5 13.0 18.10 15.50 15.5 316-16SM210-16008P ● ● ○ ○ 16.00 0.8 13.0 18.10 15.50 15.5 316-16SM210-16010P ● ● ○ ○ 16.00 1.0 13.0 18.10 15.50 15.5 316-16SM210-16030P ● ● ○ ○ 16.00 3.0 13.0 18.10 15.50 15.5 ● = First choice ○ = Good choice 234
