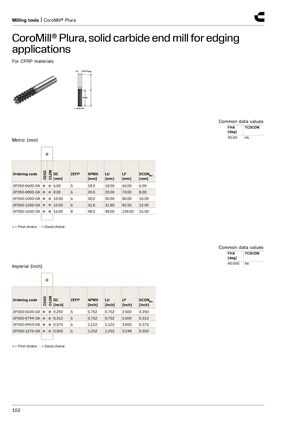

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for edging applications​​ For CFRP materials Common data values FHA TCDCON [deg] 40.00 h6 Metric (mm) O O12M O2AD Ordering code DC ZEFP APMX LU LF DCONMS [mm] [mm] [mm] [mm] [mm] 2P350-0600-OA ● ● 6.00 5 18.0 18.00 60.00 6.00 2P350-0800-OA ● ● 8.00 6 20.0 20.00 70.00 8.00 2P350-1000-OA ● ● 10.00 6 30.0 30.00 80.00 10.00 2P350-1200-OA ● ● 12.00 6 31.8 31.80 82.50 12.00 2P350-1600-OA ● ● 16.00 8 48.0 48.00 108.00 16.00 ● = First choice ○ = Good choice Common data values FHA TCDCON [deg] 40.000 h6 Imperial (inch) O O12M O2AD Ordering code DC ZEFP APMX LU LF DCONMS [inch] [inch] [inch] [inch] [inch] 2P350-0635-OA ● ● 0.250 5 0.752 0.752 2.500 0.250 2P350-0794-OA ● ● 0.313 6 0.752 0.752 2.500 0.313 2P350-0953-OA ● ● 0.375 6 1.122 1.122 3.000 0.375 2P350-1270-OA ● ● 0.500 6 1.252 1.252 3.248 0.500 ● = First choice ○ = Good choice 102
