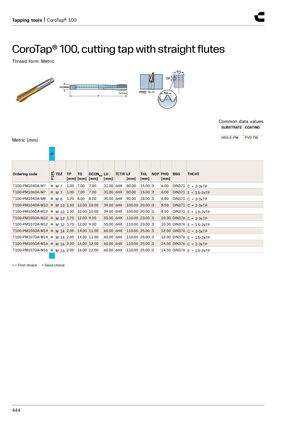

Tapping tools | CoroTap® 100 CoroTap® 100, cutting tap with straight flutes​​ Thread form: Metric THL Common data values SUBSTRATE COATING HSS-E-PM PVD TiN Metric (mm) P P1PL Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T100-PM104DA-M7 ● M 7 1.00 7.00 7.00 31.00 6HX 80.00 15.00 3 6.00 DIN371 C = 2-3xTP T100-PM106DA-M7 ● M 7 1.00 7.00 7.00 31.00 6HX 80.00 15.00 3 6.00 DIN371 E = 1.5-2xTP T100-PM104DA-M8 ● M 8 1.25 8.00 8.00 35.00 6HX 90.00 18.00 3 6.80 DIN371 C = 2-3xTP T100-PM104DA-M10 ● M 10 1.50 10.00 10.00 39.00 6HX 100.00 20.00 3 8.50 DIN371 C = 2-3xTP T100-PM106DA-M10 ● M 10 1.50 10.00 10.00 39.00 6HX 100.00 20.00 3 8.50 DIN371 E = 1.5-2xTP T100-PM105DA-M12 ● M 12 1.75 12.00 9.00 55.00 6HX 110.00 23.00 3 10.30 DIN376 C = 2-3xTP T100-PM107DA-M12 ● M 12 1.75 12.00 9.00 55.00 6HX 110.00 23.00 3 10.30 DIN376 E = 1.5-2xTP T100-PM105DA-M14 ● M 14 2.00 14.00 11.00 60.00 6HX 110.00 25.00 3 12.00 DIN376 C = 2-3xTP T100-PM107DA-M14 ● M 14 2.00 14.00 11.00 60.00 6HX 110.00 25.00 3 12.00 DIN376 E = 1.5-2xTP T100-PM105DA-M16 ● M 16 2.00 16.00 12.00 60.00 6HX 110.00 25.00 3 14.50 DIN376 C = 2-3xTP T100-PM107DA-M16 ● M 16 2.00 16.00 12.00 60.00 6HX 110.00 25.00 3 14.50 DIN376 E = 1.5-2xTP ● = First choice ○ = Good choice 444
