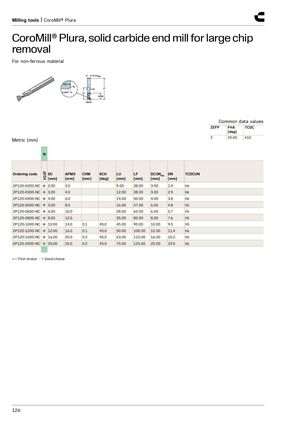

Milling tools | CoroMill® Plura CoroMill® Plura, solid carbide end mill for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDC [deg] 2 25.00 h10 Metric (mm) N H10F Ordering code DC APMX CHW KCH LU LF DCONMS DN TCDCON [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] 2P120-0200-NC ● 2.00 3.0 9.00 38.00 3.00 1.9 h6 2P120-0300-NC ● 3.00 4.0 12.00 38.00 3.00 2.9 h6 2P120-0400-NC ● 4.00 6.0 14.00 50.00 4.00 3.8 h6 2P120-0500-NC ● 5.00 8.0 16.00 57.00 6.00 4.8 h5 2P120-0600-NC ● 6.00 10.0 28.00 65.00 6.00 5.7 h5 2P120-0800-NC ● 8.00 12.0 35.00 80.00 8.00 7.6 h5 2P120-1000-NC ● 10.00 14.0 0.1 45.0 45.00 90.00 10.00 9.5 h5 2P120-1200-NC ● 12.00 16.0 0.1 45.0 50.00 100.00 12.00 11.4 h6 2P120-1600-NC ● 16.00 20.0 0.2 45.0 63.00 115.00 16.00 15.2 h6 2P120-2000-NC ● 20.00 20.0 0.2 45.0 70.00 125.00 20.00 19.0 h6 ● = First choice ○ = Good choice 126
