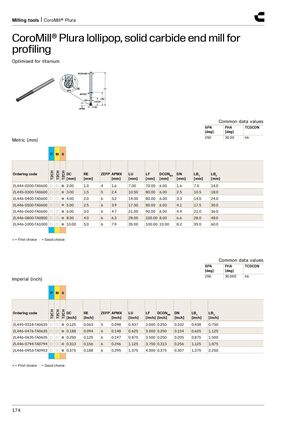

Milling tools | CoroMill® Plura CoroMill® Plura lollipop, solid carbide end mill for profiling​​ Optimised for titanium Common data values SPA FHA TCDCON [deg] [deg] 250 30.00 h6 Metric (mm) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2 _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2L444-0200-TA0600 ○ ○ ● 2.00 1.0 4 1.6 7.00 70.00 6.00 1.6 7.0 14.0 2L445-0300-TA0600 ○ ○ ● 3.00 1.5 5 2.4 10.50 80.00 6.00 2.5 10.5 18.0 2L446-0400-TA0600 ○ ○ ● 4.00 2.0 6 3.2 14.00 80.00 6.00 3.3 14.0 24.0 2L446-0500-TA0600 ○ ○ ● 5.00 2.5 6 3.9 17.50 80.00 6.00 4.1 17.5 30.0 2L446-0600-TA0600 ○ ○ ● 6.00 3.0 6 4.7 21.00 90.00 6.00 4.9 21.0 36.0 2L446-0800-TA0800 ○ ○ ● 8.00 4.0 6 6.3 28.00 100.00 8.00 6.6 28.0 48.0 2L446-1000-TA1000 ○ ○ ● 10.00 5.0 6 7.9 35.00 100.00 10.00 8.2 35.0 60.0 ● = First choice ○ = Good choice Common data values SPA FHA TCDCON [deg] [deg] 250 30.000 h6 Imperial (inch) P M S T2CH T2CH T2CH Ordering code DC RE ZEFP APMX LU LF DCONMS DN LB 1 _ LB 2_ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] 2L445-0318-TA0635 ○ ○ ● 0.125 0.063 5 0.098 0.437 3.000 0.250 0.102 0.438 0.750 2L446-0476-TA0635 ○ ○ ● 0.188 0.094 6 0.148 0.625 3.000 0.250 0.154 0.625 1.125 2L446-0635-TA0635 ○ ○ ● 0.250 0.125 6 0.197 0.875 3.500 0.250 0.205 0.875 1.500 2L446-0794-TA0794 ○ ○ ● 0.313 0.156 6 0.246 1.125 3.750 0.313 0.256 1.125 1.875 2L446-0953-TA0953 ○ ○ ● 0.375 0.188 6 0.295 1.375 4.000 0.375 0.307 1.375 2.250 ● = First choice ○ = Good choice 174
