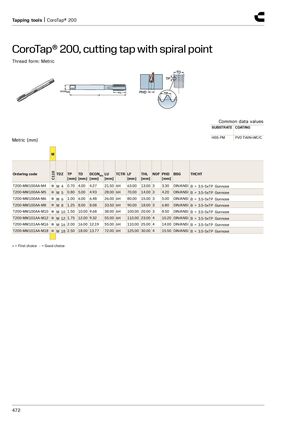

Tapping tools | CoroTap® 200 CoroTap® 200, cutting tap with spiral point​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-PM PVD TiAlN+WC/C Metric (mm) M C110 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T200-MM100AA-M4 ● M 4 0.70 4.00 4.27 21.50 6H 63.00 13.00 3 3.30 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AA-M5 ● M 5 0.80 5.00 4.93 28.00 6H 70.00 14.00 3 4.20 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AA-M6 ● M 6 1.00 6.00 6.48 26.00 6H 80.00 15.00 3 5.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AA-M8 ● M 8 1.25 8.00 8.08 33.50 6H 90.00 18.00 3 6.80 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM100AA-M10 ● M 10 1.50 10.00 9.68 38.00 6H 100.00 20.00 3 8.50 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AA-M12 ● M 12 1.75 12.00 9.32 55.00 6H 110.00 23.00 4 10.20 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AA-M16 ● M 16 2.00 16.00 12.19 55.00 6H 110.00 25.00 4 14.00 DIN/ANSI B = 3.5-5xTP Gunnose T200-MM101AA-M18 ● M 18 2.50 18.00 13.77 72.00 6H 125.00 30.00 4 15.50 DIN/ANSI B = 3.5-5xTP Gunnose ● = First choice ○ = Good choice 472
