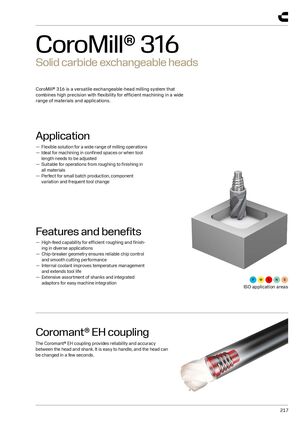

CoroMill® 316 Solid carbide exchangeable heads CoroMill® 316 is a versatile exchangeable-head milling system that combines high precision with flexibility for efficient machining in a wide range of materials and applications. Application — Flexible solution for a wide range of milling operations — Ideal for machining in confined spaces or when tool length needs to be adjusted — Suitable for operations from roughing to finishing in all materials — Perfect for small batch production, component variation and frequent tool change Features and benefits — High-feed capability for efficient roughing and finish- ing in diverse applications — Chip-breaker geometry ensures reliable chip control and smooth cutting performance — Internal coolant improves temperature management and extends tool life — Extensive assortment of shanks and integrated adaptors for easy machine integration ISO application areas Coromant® EH coupling The Coromant® EH coupling provides reliability and accuracy between the head and shank. It is easy to handle, and the head can be changed in a few seconds. 217
