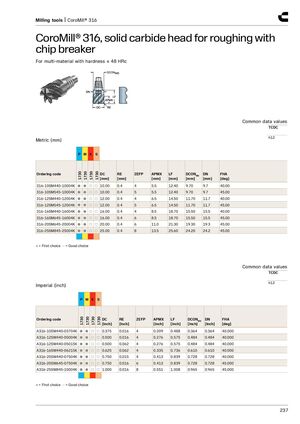

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for roughing with chip breaker​​ For multi-material with hardness ≤ 48 HRc Common data values TCDC h12 Metric (mm) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN FHA [mm] [mm] [mm] [mm] [mm] [mm] [deg] 316-10SM440-10004K ● ● ○ ○ 10.00 0.4 4 5.5 12.40 9.70 9.7 40.00 316-10SM545-10004K ● ● ○ ○ 10.00 0.4 5 5.5 12.40 9.70 9.7 45.00 316-12SM440-12004K ● ● ○ ○ 12.00 0.4 4 6.5 14.50 11.70 11.7 40.00 316-12SM545-12004K ● ● ○ ○ 12.00 0.4 5 6.5 14.50 11.70 11.7 45.00 316-16SM440-16004K ● ● ○ ○ 16.00 0.4 4 8.5 18.70 15.50 15.5 40.00 316-16SM645-16004K ● ● ○ ○ 16.00 0.4 6 8.5 18.70 15.50 15.5 45.00 316-20SM645-20004K ● ● ○ ○ 20.00 0.4 6 11.0 21.30 19.30 19.3 45.00 316-25SM845-25004K ● ● ○ ○ 25.00 0.4 8 13.5 25.60 24.20 24.2 45.00 ● = First choice ○ = Good choice Common data values TCDC h12 Imperial (inch) P M K S 1730 1730 1730 1730 Ordering code DC RE ZEFP APMX LF DCONMS DN FHA [inch] [inch] [inch] [inch] [inch] [inch] [deg] A316-10SM440-03704K ● ● ○ ○ 0.375 0.016 4 0.209 0.488 0.364 0.364 40.000 A316-12SM440-05004K ● ● ○ ○ 0.500 0.016 4 0.276 0.575 0.484 0.484 40.000 A316-12SM440-05015K ● ● ○ ○ 0.500 0.062 4 0.276 0.575 0.484 0.484 40.000 A316-16SM440-06215K ● ● ○ ○ 0.625 0.062 4 0.335 0.736 0.610 0.610 40.000 A316-20SM440-07504K ● ● ○ ○ 0.750 0.015 4 0.413 0.839 0.728 0.728 40.000 A316-20SM645-07504K ● ● ○ ○ 0.750 0.016 6 0.413 0.839 0.728 0.728 45.000 A316-25SM845-10004K ● ● ○ ○ 1.000 0.016 8 0.551 1.008 0.965 0.965 45.000 ● = First choice ○ = Good choice 237
