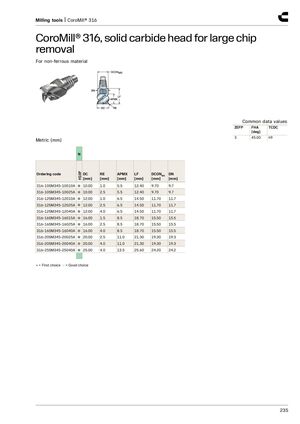

Milling tools | CoroMill® 316 CoroMill® 316, solid carbide head for large chip removal​​ For non-ferrous material Common data values ZEFP FHA TCDC [deg] 3 45.00 h9 Metric (mm) N H10F Ordering code DC RE APMX LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] 316-10SM345-10010A ● 10.00 1.0 5.5 12.40 9.70 9.7 316-10SM345-10025A ● 10.00 2.5 5.5 12.40 9.70 9.7 316-12SM345-12010A ● 12.00 1.0 6.5 14.50 11.70 11.7 316-12SM345-12025A ● 12.00 2.5 6.5 14.50 11.70 11.7 316-12SM345-12040A ● 12.00 4.0 6.5 14.50 11.70 11.7 316-16SM345-16015A ● 16.00 1.5 8.5 18.70 15.50 15.5 316-16SM345-16025A ● 16.00 2.5 8.5 18.70 15.50 15.5 316-16SM345-16040A ● 16.00 4.0 8.5 18.70 15.50 15.5 316-20SM345-20025A ● 20.00 2.5 11.0 21.30 19.30 19.3 316-20SM345-20040A ● 20.00 4.0 11.0 21.30 19.30 19.3 316-25SM345-25040A ● 25.00 4.0 13.5 25.60 24.20 24.2 ● = First choice ○ = Good choice 235
