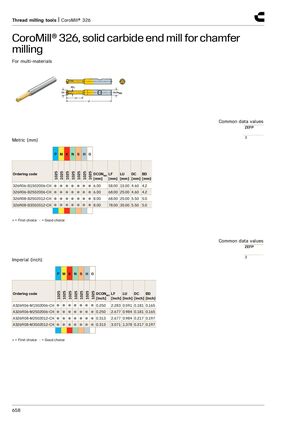

Thread milling tools | CoroMill® 326 CoroMill® 326, solid carbide end mill for chamfer milling​​ For multi-materials Common data values ZEFP 3 Metric (mm) P M K N S H O 1025 1025 1025 1025 1025 1025 1025 Ordering code DCONMS LF LU DC BD [mm] [mm] [mm] [mm] [mm] 326R06-B1502006-CH ● ● ● ● ● ● ● 6.00 58.00 15.00 4.60 4.2 326R06-B2502006-CH ● ● ● ● ● ● ● 6.00 68.00 25.00 4.60 4.2 326R08-B2502012-CH ● ● ● ● ● ● ● 8.00 68.00 25.00 5.50 5.0 326R08-B3502012-CH ● ● ● ● ● ● ● 8.00 78.00 35.00 5.50 5.0 ● = First choice ○ = Good choice Common data values ZEFP 3 Imperial (inch) P M K N S H O 1025 1025 1025 1025 1025 1025 1025 Ordering code DCONMS LF LU DC BD [inch] [inch] [inch] [inch] [inch] A326R06-M1502006-CH ● ● ● ● ● ● ● 0.250 2.283 0.591 0.181 0.165 A326R06-M2502006-CH ● ● ● ● ● ● ● 0.250 2.677 0.984 0.181 0.165 A326R08-M2502012-CH ● ● ● ● ● ● ● 0.313 2.677 0.984 0.217 0.197 A326R08-M3502012-CH ● ● ● ● ● ● ● 0.313 3.071 1.378 0.217 0.197 ● = First choice ○ = Good choice 658
