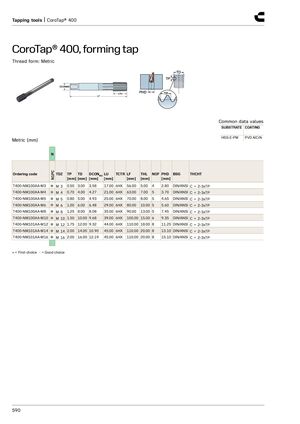

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Common data values SUBSTRATE COATING HSS-E-PM PVD AlCrN Metric (mm) N N1PC Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG THCHT [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-NM100AA-M3 ● M 3 0.50 3.00 3.58 17.00 6HX 56.00 5.00 4 2.80 DIN/ANSI C = 2-3xTP T400-NM100AA-M4 ● M 4 0.70 4.00 4.27 21.00 6HX 63.00 7.00 5 3.70 DIN/ANSI C = 2-3xTP T400-NM100AA-M5 ● M 5 0.80 5.00 4.93 25.00 6HX 70.00 8.00 5 4.65 DIN/ANSI C = 2-3xTP T400-NM100AA-M6 ● M 6 1.00 6.00 6.48 29.00 6HX 80.00 10.00 5 5.60 DIN/ANSI C = 2-3xTP T400-NM100AA-M8 ● M 8 1.25 8.00 8.08 35.00 6HX 90.00 13.00 5 7.45 DIN/ANSI C = 2-3xTP T400-NM100AA-M10 ● M 10 1.50 10.00 9.68 39.00 6HX 100.00 15.00 6 9.35 DIN/ANSI C = 2-3xTP T400-NM101AA-M12 ● M 12 1.75 12.00 9.32 44.00 6HX 110.00 18.00 8 11.25 DIN/ANSI C = 2-3xTP T400-NM101AA-M14 ● M 14 2.00 14.00 10.90 45.00 6HX 110.00 20.00 8 13.10 DIN/ANSI C = 2-3xTP T400-NM101AA-M16 ● M 16 2.00 16.00 12.19 45.00 6HX 110.00 20.00 8 15.10 DIN/ANSI C = 2-3xTP ● = First choice ○ = Good choice 590
