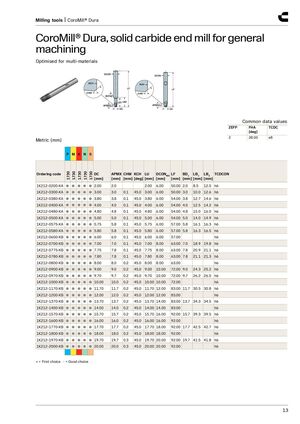

Milling tools | CoroMill® Dura CoroMill® Dura, solid carbide end mill for general machining​​ Optimised for multi-materials Common data values ZEFP FHA TCDC [deg] 2 28.00 e8 Metric (mm) P M K N S 1730 1730 1730 1730 1730 Ordering code DC APMX CHW KCH LU DCONMS LF BD 1 LB 1 LB 2 TCDCON _ _ _ [mm] [mm] [mm] [deg] [mm] [mm] [mm] [mm] [mm] [mm] 1K212-0200-XA ● ● ● ● ● 2.00 2.0 2.00 6.00 50.00 2.0 8.5 12.0 h6 1K212-0300-XA ● ● ● ● ● 3.00 3.0 0.1 45.0 3.00 6.00 50.00 3.0 10.0 12.6 h6 1K212-0380-XA ● ● ● ● ● 3.80 3.8 0.1 45.0 3.80 6.00 54.00 3.8 12.7 14.6 h6 1K212-0400-XA ● ● ● ● ● 4.00 4.0 0.1 45.0 4.00 6.00 54.00 4.0 12.5 14.2 h6 1K212-0480-XA ● ● ● ● ● 4.80 4.8 0.1 45.0 4.80 6.00 54.00 4.8 15.0 16.0 h6 1K212-0500-XA ● ● ● ● ● 5.00 5.0 0.1 45.0 5.00 6.00 54.00 5.0 14.0 14.9 h6 1K212-0575-XA ● ● ● ● ● 5.75 5.8 0.1 45.0 5.75 6.00 57.00 5.8 16.1 16.3 h6 1K212-0580-XA ● ● ● ● ● 5.80 5.8 0.1 45.0 5.80 6.00 57.00 5.8 16.3 16.5 h6 1K212-0600-XB ● ● ● ● ● 6.00 6.0 0.1 45.0 6.00 6.00 57.00 h6 1K212-0700-XB ● ● ● ● ● 7.00 7.0 0.1 45.0 7.00 8.00 63.00 7.0 18.9 19.8 h6 1K212-0775-XB ● ● ● ● ● 7.75 7.8 0.1 45.0 7.75 8.00 63.00 7.8 20.9 21.1 h6 1K212-0780-XB ● ● ● ● ● 7.80 7.8 0.1 45.0 7.80 8.00 63.00 7.8 21.1 21.3 h6 1K212-0800-XB ● ● ● ● ● 8.00 8.0 0.2 45.0 8.00 8.00 63.00 h6 1K212-0900-XB ● ● ● ● ● 9.00 9.0 0.2 45.0 9.00 10.00 72.00 9.0 24.3 25.2 h6 1K212-0970-XB ● ● ● ● ● 9.70 9.7 0.2 45.0 9.70 10.00 72.00 9.7 26.2 26.5 h6 1K212-1000-XB ● ● ● ● ● 10.00 10.0 0.2 45.0 10.00 10.00 72.00 h6 1K212-1170-XB ● ● ● ● ● 11.70 11.7 0.2 45.0 11.70 12.00 83.00 11.7 30.5 30.8 h6 1K212-1200-XB ● ● ● ● ● 12.00 12.0 0.2 45.0 12.00 12.00 83.00 h6 1K212-1370-XB ● ● ● ● ● 13.70 13.7 0.2 45.0 13.70 14.00 83.00 13.7 34.3 34.5 h6 1K212-1400-XB ● ● ● ● ● 14.00 14.0 0.2 45.0 14.00 14.00 83.00 h6 1K212-1570-XB ● ● ● ● ● 15.70 15.7 0.2 45.0 15.70 16.00 92.00 15.7 39.3 39.5 h6 1K212-1600-XB ● ● ● ● ● 16.00 16.0 0.2 45.0 16.00 16.00 92.00 h6 1K212-1770-XB ● ● ● ● ● 17.70 17.7 0.2 45.0 17.70 18.00 92.00 17.7 42.5 42.7 h6 1K212-1800-XB ● ● ● ● ● 18.00 18.0 0.2 45.0 18.00 18.00 92.00 h6 1K212-1970-XB ● ● ● ● ● 19.70 19.7 0.3 45.0 19.70 20.00 92.00 19.7 41.5 41.8 h6 1K212-2000-XB ● ● ● ● ● 20.00 20.0 0.3 45.0 20.00 20.00 92.00 h6 ● = First choice ○ = Good choice 13
